FASTENER STANDARD
M10 x 35

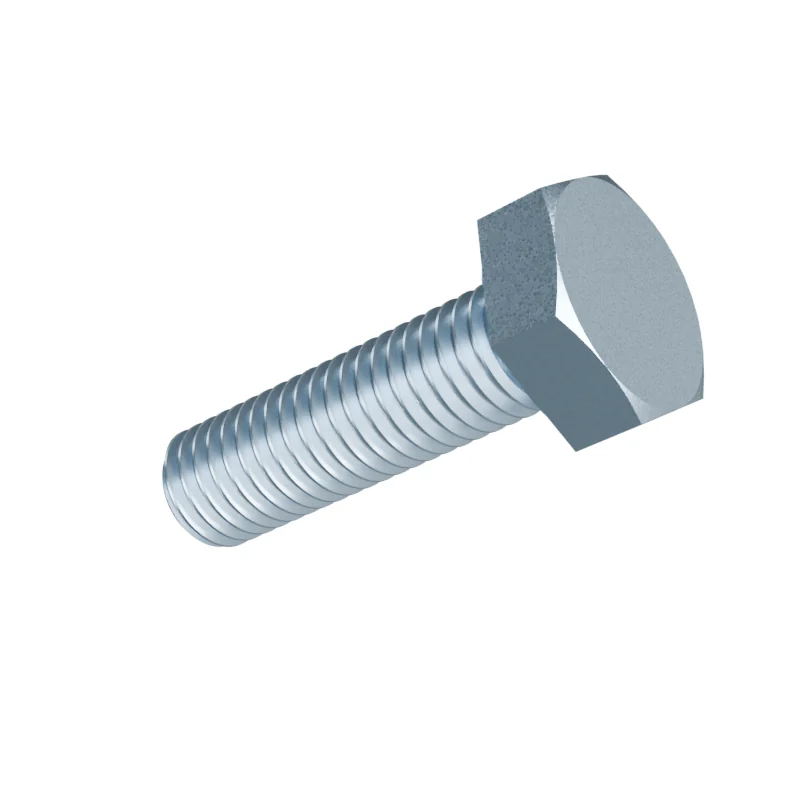

Hexagon Head Screw — Fully Threaded — DIN 933 / ISO 4017 / GB/T 5783
M10 x 35 is listed in the confirmed supply specifications of the products shown below. Dimensions are referenced against DIN 933 / ISO 4017 / GB/T 5783; where these standards differ, both values are shown so the correct one can be confirmed before ordering. Packing quantity, stock status and mechanical property class are confirmed in the quotation. Column symbols: P = thread pitch; s = width across flats; e = width across corners; k = head height.
Edition to confirm · Specification| Standard | Status | P (mm) | s (mm) | e (mm) | k (mm) |
|---|---|---|---|---|---|
| DIN 933 | Historical | 1.5 | 17 | 18.9 | 6.4 |
| ISO 4017 | Current | 1.5 | 16 | 17.77 | 6.4 |
| GB/T 5783 | Current | 1.5 | 16 | 17.77 | 6.4 |
Compare before substituting
DIN 933 →ISO 4017GB/T 5783ISO 4018DIN 933 / M10 / s: ISO 4017 16 · DIN 933 17
DIN 933 / M10 / e: ISO 4017 17.77 · DIN 933 18.9
