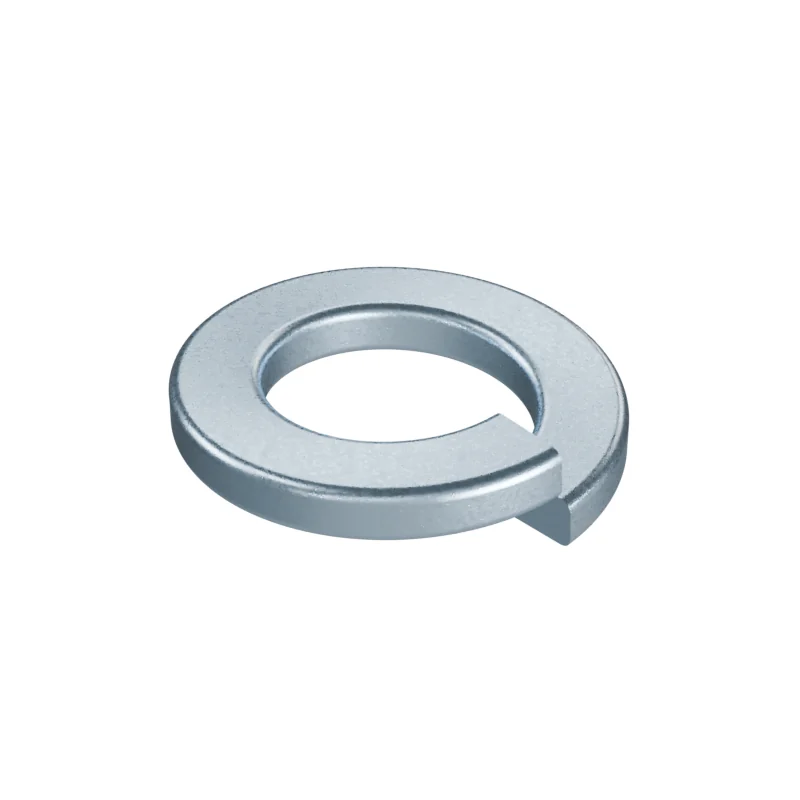

DIN 127 M10 Spring Lock Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M10
mm · DIN 127 · 1987-10 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| d1 | Inner diameter | 10.2 | – | – |
| d2 | Outer diameter | 18.1 | – | – |
| s | Material thickness | 2.2 | – | – |
| Approx. mass | 2.53 | – | – |
- Approx. weight
- ≈ 2.53 kg per 1 000 pieces · Bare steel, before coating and packing.395 pieces per kg
