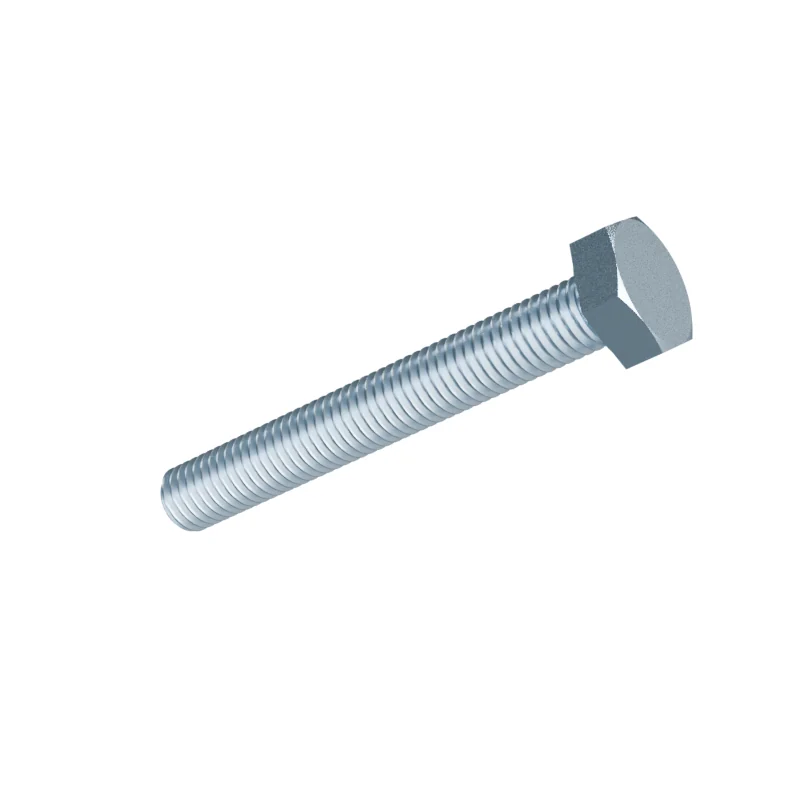

ISO 4018 M10×75 Fully Threaded Hex Bolt12 combinations of material, property class and finish supplied in this size.

Standard
ISO 4018 · 2022
Thread
M10 · pitch 1.5 mm
Length under head
75 mmBetween the standard lengths of ISO 4018 (20–100 mm) — supplied to works standard
Drive
16 mm spanner · e 17.59 mm
Head height
6.4 mm
Clearance / tap drill
10.5 / 11 / 12 mm · 8.5 mm
Weight
53.25 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering18.8 pieces per kg
seLkdP
Fully Threaded Hex Bolt, Product Grade C ISO 4018View product
View in 3D
ISO 4018 dimension tablePDF · every size

Order M10×75

Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.

MaterialClassFinishQuantityNet weight
Carbon Steel4.6Zinc Plated—
Carbon Steel4.6Hot Dip Galvanized—
Carbon Steel4.6Dacromet—
Carbon Steel4.6Blackened—
Carbon Steel4.6Phosphate—
Carbon Steel4.6Plain—
Carbon Steel4.8Zinc Plated—
Carbon Steel4.8Hot Dip Galvanized—
Carbon Steel4.8Dacromet—
Carbon Steel4.8Blackened—
Carbon Steel4.8Phosphate—
Carbon Steel4.8Plain—

Dimensions at M10×75

DimensionValue
P1.5 mm
s16 mm
e17.59 mm
k6.4 mm
Weight53.25 kg / 1000 pcs
Pieces per kg18.8

Plating adds thickness — state the finish on the order.

Holes for this thread

ISO 273 · ISO 2306
HoleDiameter
Clearance hole10.5 / 11 / 12 mm
Tap drill8.5 mm

StandardsISO 4018ISO 4017DIN 933GB/T 5783All sizes

Quote ISO 4018 M10×75 Fully Threaded Hex Bolt

Standard, size, material, finish, quantity and destination are enough to begin.
