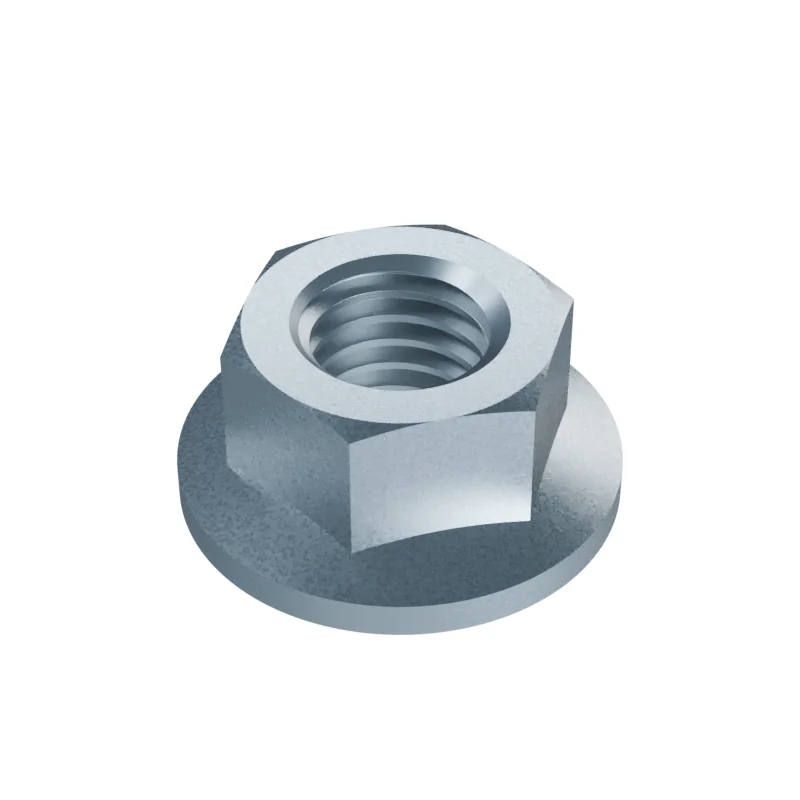

DIN 6923 M10 Hex Flange Nut
In stock in 16 material, grade and finish combinations.
Dimensions at M10
mm · DIN 6923 · 1983-06 · withdrawn| Dimension | Nominal | Min | Max | ISO 4161 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| s | Width across flats | – | – | 15 | 15 |
| e | Width across corners | – | 16.64 | – | 16.64 |
| m | Nut height | 10 | – | – | 10 |
| dc | Flange diameter | 21.8 | – | – | 21.8 |
- ISO 4161
- Values in bold differ from DIN 6923.
- Approx. weight
- ≈ 10.35 kg per 1 000 pieces · Bare steel, before coating and packing.96.6 pieces per kg
