Name: Hex Jam Nut ASME B18.2.2
Brand: TaurusFix

Select sizes and quantities — 9 confirmed sizes to ASME B18.2.2

Material

Grade

Finish

Find a size

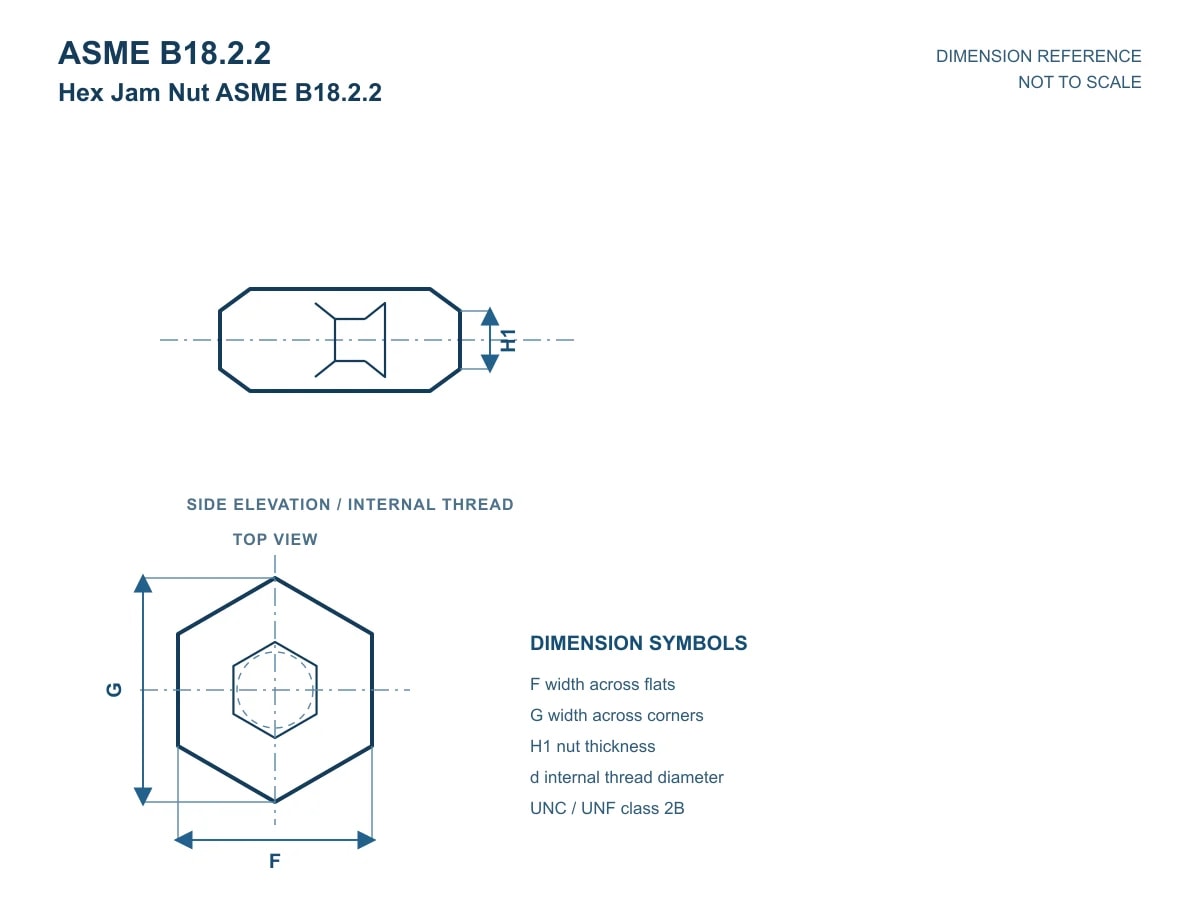

dNominal Diameter (in)	sWidth Across Flats (max) (in)	eWidth Across Corners (min) (in)	H₁Jam Nut Thickness (min) (in)	H₁Jam Nut Thickness (max) (in)	dBasic Major Diameter (in)	MOQ
1/4-20 UNC	0.438	0.488	0.15	0.163	0.25	5000
5/16-18 UNC	0.5	0.557	0.18	0.195	0.3125	5000
3/8-16 UNC	0.563	0.628	0.21	0.227	0.375	5000
7/16-14 UNC	0.688	0.768	0.24	0.26	0.4375	3000
1/2-13 UNC	0.75	0.84	0.302	0.323	0.5	3000
5/8-11 UNC	0.938	1.051	0.363	0.387	0.625	2000
3/4-10 UNC	1.125	1.24	0.398	0.446	0.75	2000
7/8-9 UNC	1.312	1.447	0.458	0.51	0.875	1000
1-8 UNC	1.5	1.653	0.519	0.575	1	1000

Showing 9 of 9 sizes

1/4-20 UNC × 0.438 × 0.488 × 0.15 × 0.163 × 0.25 × 20 × UNC × 2B × 0.428 × 0.505

dNominal Diameter (in)1/4-20 UNC

sWidth Across Flats (max) (in)0.438

eWidth Across Corners (min) (in)0.488

H₁Jam Nut Thickness (min) (in)0.15

H₁Jam Nut Thickness (max) (in)0.163

dBasic Major Diameter (in)0.25

MOQ5000

5/16-18 UNC × 0.5 × 0.557 × 0.18 × 0.195 × 0.3125 × 18 × UNC × 2B × 0.489 × 0.577

dNominal Diameter (in)5/16-18 UNC

sWidth Across Flats (max) (in)0.5

eWidth Across Corners (min) (in)0.557

H₁Jam Nut Thickness (min) (in)0.18

H₁Jam Nut Thickness (max) (in)0.195

dBasic Major Diameter (in)0.3125

MOQ5000

3/8-16 UNC × 0.563 × 0.628 × 0.21 × 0.227 × 0.375 × 16 × UNC × 2B × 0.551 × 0.65

dNominal Diameter (in)3/8-16 UNC

sWidth Across Flats (max) (in)0.563

eWidth Across Corners (min) (in)0.628

H₁Jam Nut Thickness (min) (in)0.21

H₁Jam Nut Thickness (max) (in)0.227

dBasic Major Diameter (in)0.375

MOQ5000

7/16-14 UNC × 0.688 × 0.768 × 0.24 × 0.26 × 0.4375 × 14 × UNC × 2B × 0.675 × 0.794

dNominal Diameter (in)7/16-14 UNC

sWidth Across Flats (max) (in)0.688

eWidth Across Corners (min) (in)0.768

H₁Jam Nut Thickness (min) (in)0.24

H₁Jam Nut Thickness (max) (in)0.26

dBasic Major Diameter (in)0.4375

MOQ3000

1/2-13 UNC × 0.75 × 0.84 × 0.302 × 0.323 × 0.5 × 13 × UNC × 2B × 0.736 × 0.866

dNominal Diameter (in)1/2-13 UNC

sWidth Across Flats (max) (in)0.75

eWidth Across Corners (min) (in)0.84

H₁Jam Nut Thickness (min) (in)0.302

H₁Jam Nut Thickness (max) (in)0.323

dBasic Major Diameter (in)0.5

MOQ3000

5/8-11 UNC × 0.938 × 1.051 × 0.363 × 0.387 × 0.625 × 11 × UNC × 2B × 0.922 × 1.083

dNominal Diameter (in)5/8-11 UNC

sWidth Across Flats (max) (in)0.938

eWidth Across Corners (min) (in)1.051

H₁Jam Nut Thickness (min) (in)0.363

H₁Jam Nut Thickness (max) (in)0.387

dBasic Major Diameter (in)0.625

MOQ2000

3/4-10 UNC × 1.125 × 1.24 × 0.398 × 0.446 × 0.75 × 10 × UNC × 2B × 1.088 × 1.299

dNominal Diameter (in)3/4-10 UNC

sWidth Across Flats (max) (in)1.125

eWidth Across Corners (min) (in)1.24

H₁Jam Nut Thickness (min) (in)0.398

H₁Jam Nut Thickness (max) (in)0.446

dBasic Major Diameter (in)0.75

MOQ2000

7/8-9 UNC × 1.312 × 1.447 × 0.458 × 0.51 × 0.875 × 9 × UNC × 2B × 1.269 × 1.516

dNominal Diameter (in)7/8-9 UNC

sWidth Across Flats (max) (in)1.312

eWidth Across Corners (min) (in)1.447

H₁Jam Nut Thickness (min) (in)0.458

H₁Jam Nut Thickness (max) (in)0.51

dBasic Major Diameter (in)0.875

MOQ1000

1-8 UNC × 1.5 × 1.653 × 0.519 × 0.575 × 1 × 8 × UNC × 2B × 1.45 × 1.732

dNominal Diameter (in)1-8 UNC

sWidth Across Flats (max) (in)1.5

eWidth Across Corners (min) (in)1.653

H₁Jam Nut Thickness (min) (in)0.519

H₁Jam Nut Thickness (max) (in)0.575

dBasic Major Diameter (in)1

MOQ1000

Product details

Description: Hex jam nut manufactured to ASME B18.2.2 with UNC threads and thread class 2B. The nut has a reduced height compared to a standard hex nut, making it suitable for use as a locknut when tightened against a primary nut. Available in carbon steel, Grade 2 or Grade 5, with zinc plated or plain finish. Sizes range from 1/4-20 UNC to 1-8 UNC. For quotation, specify diameter, thread series, grade, finish, and required quantity.
Features: Hexagonal body for standard wrench engagement · Reduced height compared to standard hex nuts · UNC threads, class 2B · Available in sizes 1/4-20 UNC to 1-8 UNC
Applications: Locking a second nut against a standard hex nut, Joints with limited clearance under the nut, Adjustable rods, tie rods and turnbuckles, Maintenance work where a full-height nut will not fit

Order assurance

Confirmed for the quoted product and order.

Reports & inspection

Agreed in the quotation.

EN 10204 3.1 material certificate
Dimensional inspection report
Certificate of conformity
Mechanical test report
Chemical analysis report
Coating inspection report
Batch and lot traceability

Packaging & delivery

Options we supply.

Bulk carton packing
Small boxes with outer cartons
Palletized shipment
Fumigation-free pallets
Inner poly bags
Buyer branding and labels

Product questions

What sizes of Hex Jam Nut ASME B18.2.2 do you supply?

Execution standard: ASME B18.2.2. The confirmed specification table covers 1–7 diameters. Use the specification table to select the exact variant required for quotation.

Which materials, grades and finishes can I order?

Material: Carbon Steel; Property class: Grade 2, Grade 5; Finish: Zinc Plated, Plain. Availability should be confirmed against the selected specification and order quantity.

Where are these jam nuts typically used?

Typical applications include Locking a second nut against a standard hex nut, Joints with limited clearance under the nut, Adjustable rods, tie rods and turnbuckles, Maintenance work where a full-height nut will not fit. Final suitability depends on the selected material, grade, finish and operating conditions.
