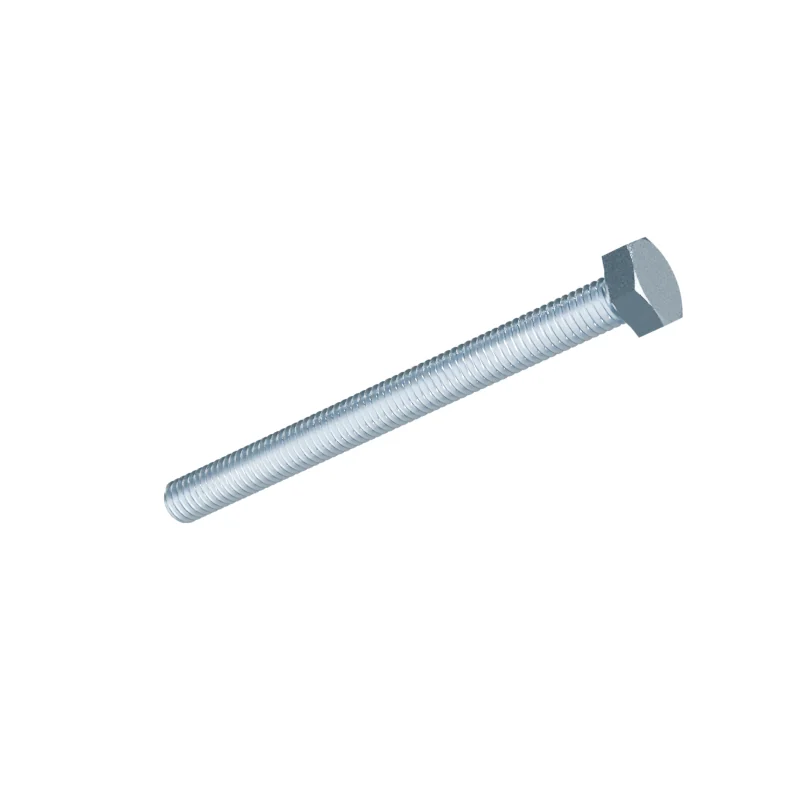

DIN 933 M6×70 Fully Threaded Hex Bolt12 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 933 · 1987-09
- Thread
- M6 · pitch 1 mm
- Length under head
- 70 mm · 68.5–71.5 mm to DIN 933 product grade B
- Drive
- 10 mm spanner · e 10.89 mm
- Head height
- 4 mm
- Clearance / tap drill
- 6.4 / 6.6 / 7 mm · 5 mm
- Weight
- 14.40 kg per 1 000 pieces · From the standard's published table69.4 pieces per kg
Supplied to DIN 933 M6×70. ISO 4017 (e 11.05 mm against 10.89) and GB/T 5783 (e 11.05 mm against 10.89) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M6×70
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M6×70 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Carbon Steel | 4.8 | Blackened | — | |
| Carbon Steel | 4.8 | Phosphate | — | |
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Blackened | — | |
| Carbon Steel | 8.8 | Phosphate | — | |
| Carbon Steel | 8.8 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M6×70
| Dimension | Value |
|---|---|
| P | 1 mm |
| s | 10 mm |
| e | 10.89 mm |
| k | 4 mm |
| Weight | 14.40 kg / 1000 pcs |
| Pieces per kg | 69.4 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 6.4 / 6.6 / 7 mm |
| Tap drill | 5 mm |
Other lengths in M6
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M6×50 | 11.00 | open |
| M6×55 | 11.90 | open |
| M6×60 | 12.70 | open |
| M6×70 | 14.40 | this page |
| M6×80 | 16.20 | open |
