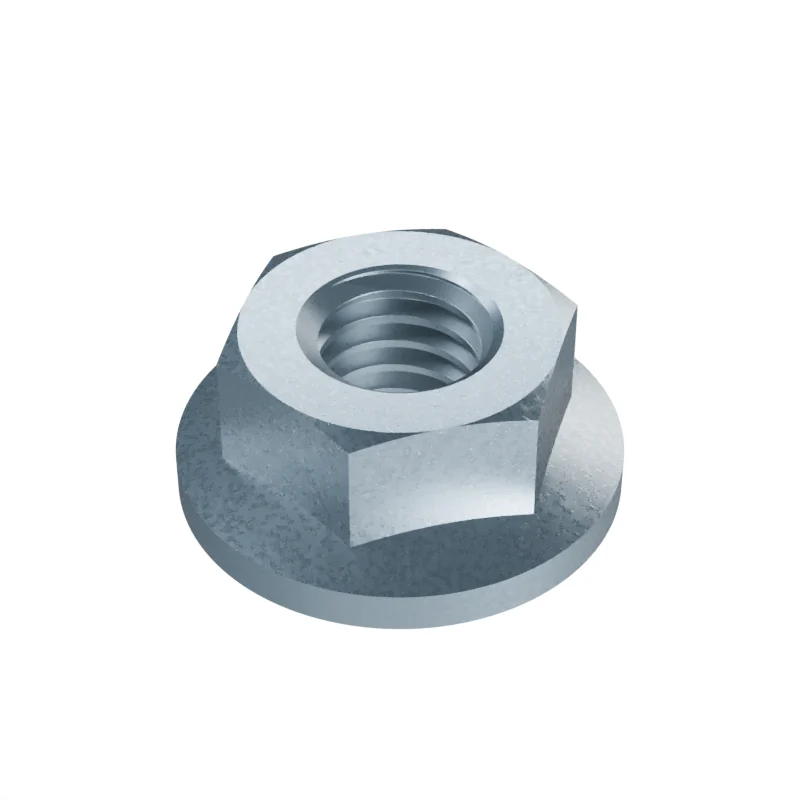

DIN 6923 M6 Hex Flange Nut
In stock in 14 material, grade and finish combinations.
Dimensions at M6
mm · DIN 6923 · 1983-06 · withdrawn| Dimension | Nominal | Min | Max | ISO 4161 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| s | Width across flats | – | – | 10 | 10 |
| e | Width across corners | – | 11.05 | – | 11.05 |
| m | Nut height | 6 | – | – | 6 |
| dc | Flange diameter | 14.2 | – | – | 14.2 |
- ISO 4161
- Values in bold differ from DIN 6923.
- Approx. weight
- ≈ 3.00 kg per 1 000 pieces · Bare steel, before coating and packing.333 pieces per kg
