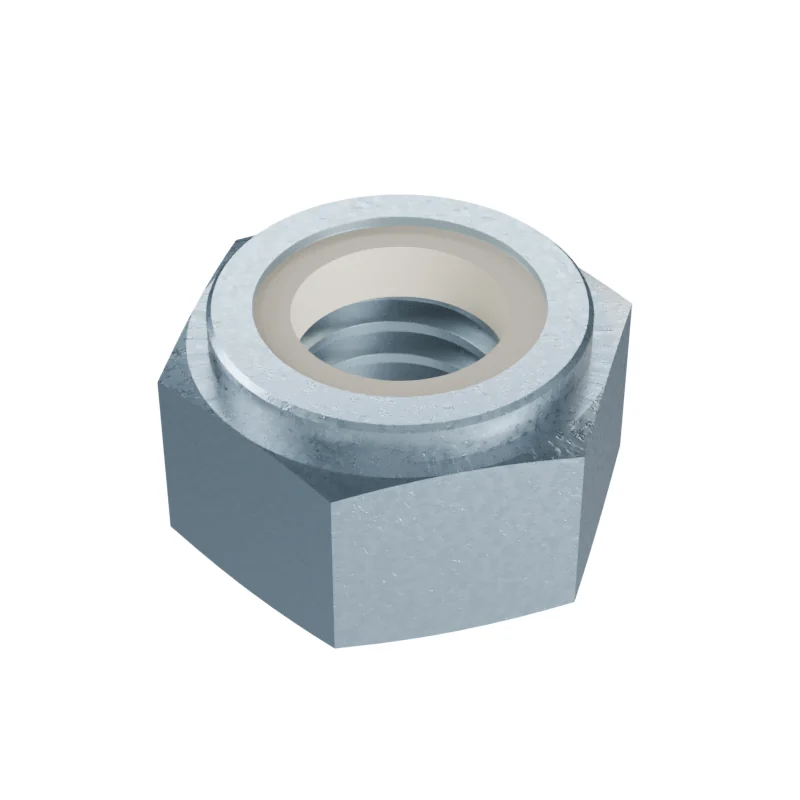

DIN 985 M6 Thin Nylon Insert Lock Nut19 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 985
- Thread
- M6 · pitch 1 mm
- Drive
- 10 mm spanner · e 11.05 mm
- Weight
- 3.03 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering330 pieces per kg
Supplied to DIN 985 M6 — the figures shown here match ISO 10511. All 2 record the same figures in this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M6
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
Every standard listed here records the same figures at M6. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 04 | Zinc Plated | — | |
| Carbon Steel | 04 | Blackened | — | |
| Carbon Steel | 04 | Plain | — | |
| Carbon Steel | 04 | Dacromet | — | |
| Carbon Steel | 04 | Phosphate | — | |
| Carbon Steel | 05 | Zinc Plated | — | |
| Carbon Steel | 05 | Blackened | — | |
| Carbon Steel | 05 | Plain | — | |
| Carbon Steel | 05 | Dacromet | — | |
| Carbon Steel | 05 | Phosphate | — | |
| Carbon Steel | 8 | Zinc Plated | — | |
| Carbon Steel | 8 | Blackened | — | |
| Carbon Steel | 8 | Plain | — | |
| Carbon Steel | 8 | Dacromet | — | |
| Carbon Steel | 8 | Phosphate | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M6
| Dimension | Value |
|---|---|
| P | 1 mm |
| s | 10 mm |
| e | 11.05 mm |
| m | 6 mm |
| Weight | 3.03 kg / 1000 pcs |
| Pieces per kg | 330 |
Plating adds thickness — state the finish on the order.
