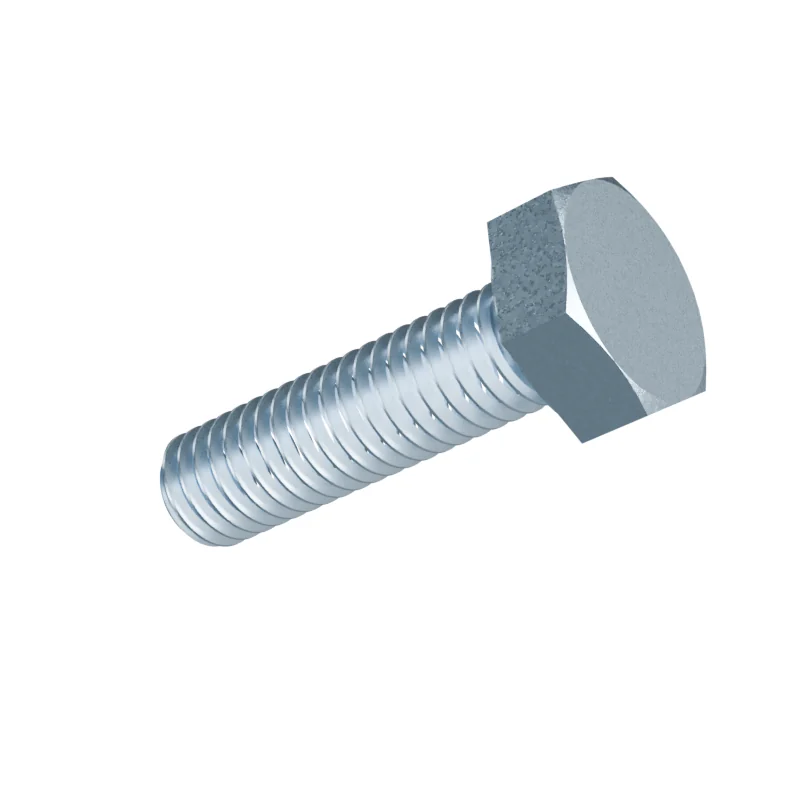

ISO 4018 M6×22 Fully Threaded Hex Bolt10 combinations of material, property class and finish supplied in this size.

Standard: ISO 4018 · 2022
Thread: M6 · pitch 1 mm
Length under head: 22 mmBetween the standard lengths of ISO 4018 (12–60 mm) — supplied to works standard
Drive: 10 mm spanner · e 10.89 mm
Head height: 4 mm
Clearance / tap drill: 6.4 / 6.6 / 7 mm · 5 mm
Weight: 7.04 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering142 pieces per kg

View in 3D

Order M6×22

Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.

Material	Class	Finish	Quantity	Net weight
Carbon Steel	4.6	Zinc Plated	Quantity of M6×22 · 4.6 · Zinc Platedpcs	—
Carbon Steel	4.6	Dacromet	Quantity of M6×22 · 4.6 · Dacrometpcs	—
Carbon Steel	4.6	Blackened	Quantity of M6×22 · 4.6 · Blackenedpcs	—
Carbon Steel	4.6	Phosphate	Quantity of M6×22 · 4.6 · Phosphatepcs	—
Carbon Steel	4.6	Plain	Quantity of M6×22 · 4.6 · Plainpcs	—
Carbon Steel	4.8	Zinc Plated	Quantity of M6×22 · 4.8 · Zinc Platedpcs	—
Carbon Steel	4.8	Dacromet	Quantity of M6×22 · 4.8 · Dacrometpcs	—
Carbon Steel	4.8	Blackened	Quantity of M6×22 · 4.8 · Blackenedpcs	—
Carbon Steel	4.8	Phosphate	Quantity of M6×22 · 4.8 · Phosphatepcs	—
Carbon Steel	4.8	Plain	Quantity of M6×22 · 4.8 · Plainpcs	—

Plating adds thickness — state the finish on the order.

ISO 273 · ISO 2306

Hole	Diameter
Clearance hole	6.4 / 6.6 / 7 mm
Tap drill	5 mm

Standard, size, material, finish, quantity and destination are enough to begin.
