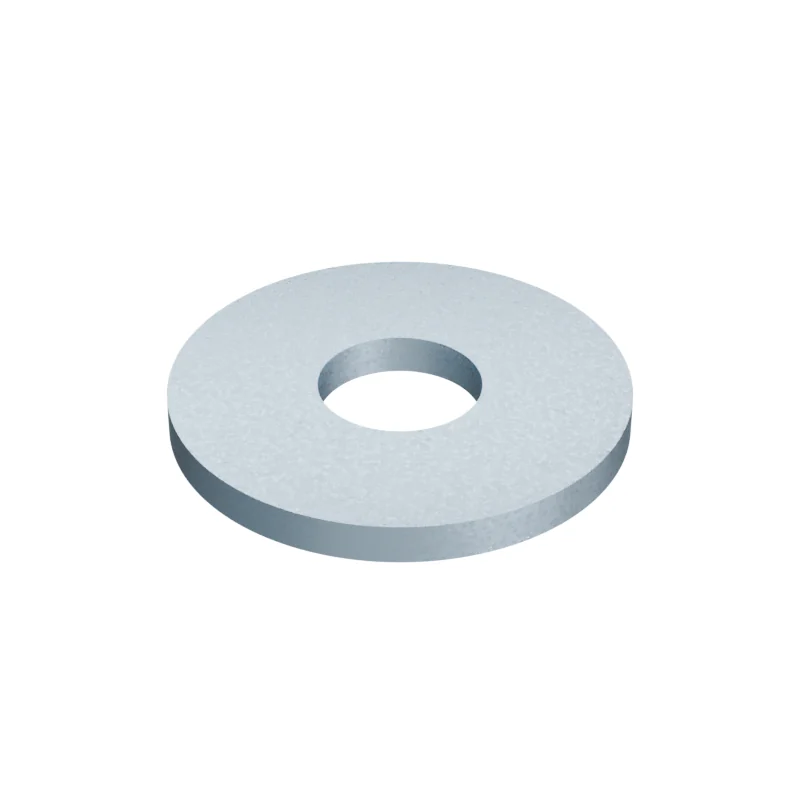

DIN 9021 M6 Large Series Plain Washer
In stock in 12 material, grade and finish combinations.
Dimensions at M6
mm · DIN 9021 · 1990-03 · withdrawn| Dimension | Nominal | Min | Max | ISO 7093-1 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| d1 | Inner diameter | 6.4 | – | – | 6.4 |
| d2 | Outer diameter | 18 | – | – | 18 |
| h | Washer thickness | 1.6 | – | – | 1.4–1.8 |
| Approx. mass | 2.79 | – | – | — |
- ISO 7093-1
- Values in bold differ from DIN 9021.
- Approx. weight
- ≈ 2.79 kg per 1 000 pieces · Bare steel, before coating and packing.358 pieces per kg
