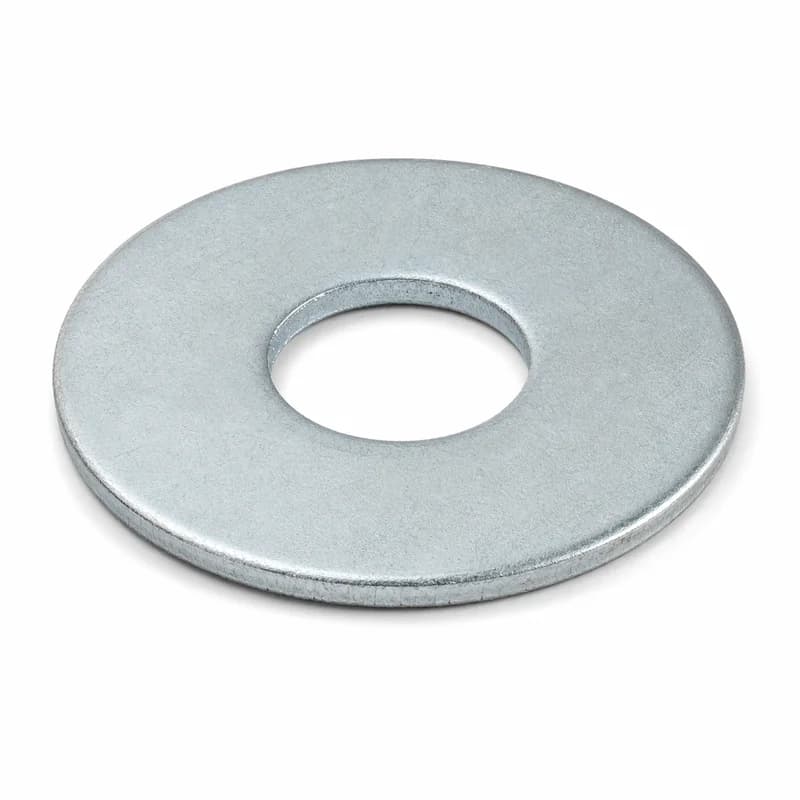

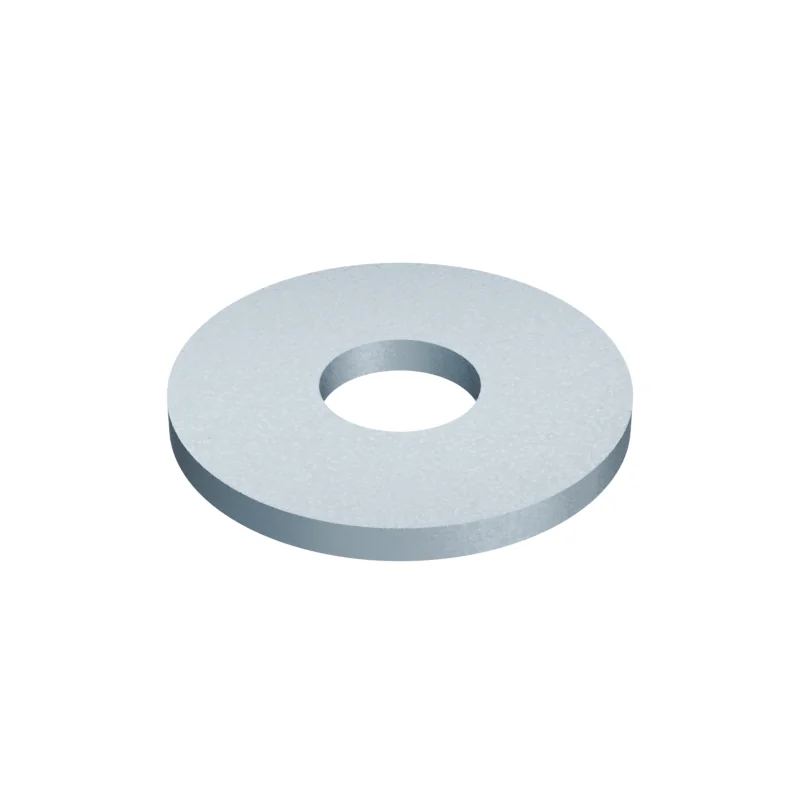

DIN 9021 M8 Large Series Plain Washer
In stock in 14 material, grade and finish combinations.
Dimensions at M8
mm · DIN 9021 · 1990-03 · withdrawn| Dimension | Nominal | Min | Max | ISO 7093-1 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| d1 | Inner diameter | 8.4 | – | – | 8.4 |
| d2 | Outer diameter | 24 | – | – | 24 |
| h | Washer thickness | 2 | – | – | 1.8–2.2 |
| Approx. mass | 6.23 | – | – | — |
- ISO 7093-1
- Values in bold differ from DIN 9021.
- Approx. weight
- ≈ 6.23 kg per 1 000 pieces · Bare steel, before coating and packing.161 pieces per kg
