Dimensional inspection report
Can be provided for the agreed inspection scope.
Nuts

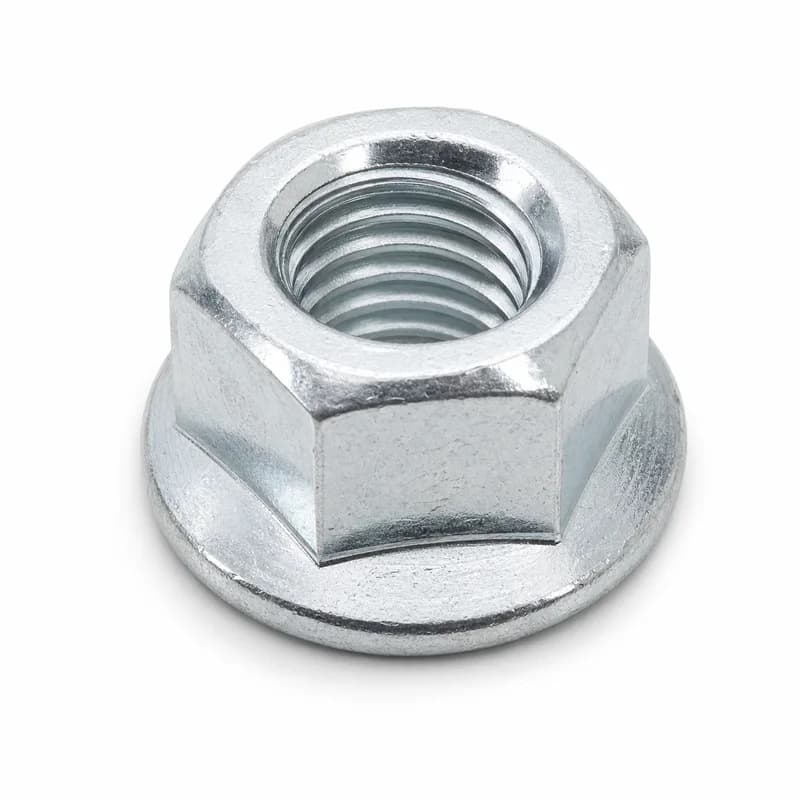

Serrated Hex Flange Nut
DIN 6923 · M6–M16 · Stainless Steel, Carbon Steel
DIN 6923 (Historical)
- Material
- Stainless Steel, Carbon Steel
- Property Class
- A2-70, A4-80, 8, 10
- Finish
- Passivated, Plain, Zinc Plated, Hot Dip Galvanized and more
- Availability
- In Stock
Final supply details are confirmed against your quotation.
Available with the order
Order assurance
The supplier has confirmed that the options below can be agreed for this product. The exact scope is fixed in the quotation or order.EN 10204 3.1 material certificate
Can be included when agreed in the order.
Certificate of conformity
Can be issued against the confirmed order requirements.
Inner poly bags
Items can be bagged before cartoning to limit moisture and loose parts in transit.
Buyer-branded packaging
Available once artwork and the minimum batch for branded packing are agreed.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Fumigation-free pallets
Plywood or pressed-wood pallets can be used where ISPM-15 marking is not wanted.
Buyer-specified labels
Available after label content and placement are approved.
PUBLISHED SUPPLY RANGE
5 rowsChoose a specification and add quantity.
Available options
Material
Grade
Stainless Steel
Carbon Steel
Finish
5 sizes
| diameter | pitch | s | m | MOQ | Quantity and inquiry |
|---|---|---|---|---|---|
| M6 | 1 | 10 | 6 | 2000 | |
| M8 | 1.25 | 13 | 8 | 2000 | |
| M10 | 1.5 | 15 | 10 | 1000 | |
| M12 | 1.75 | 18 | 12 | 1000 | |
| M16 | 2 | 24 | 16 | 1000 |
M6 × 1 × 10 × 6
diameterM6
pitch1
s10
m6
MOQ2000
M8 × 1.25 × 13 × 8
diameterM8
pitch1.25
s13
m8
MOQ2000
M10 × 1.5 × 15 × 10
diameterM10
pitch1.5
s15
m10
MOQ1000
M12 × 1.75 × 18 × 12
diameterM12
pitch1.75
s18
m12
MOQ1000
M16 × 2 × 24 × 16
diameterM16
pitch2
s24
m16
MOQ1000
PRODUCT OVERVIEW
Technical facts at a glance.
This serrated hex flange nut is manufactured to DIN 6923, featuring a hexagon drive and an integrated flange with a serrated bearing surface that helps resist loosening under vibration. Available in carbon steel grades 8 and 10, and stainless steel grades A2-70 and A4-80, with finishes including zinc plated, hot dip galvanized, Dacromet, blackened, plain, and passivated. Sizes range from M6 to M16. When requesting a quotation, specify diameter, material, grade, finish, and quantity.
Features
- Integrated serrated flange provides anti-loosening grip
- Available in multiple material and finish combinations
- Supplied in metric sizes M6 to M16
Applications
- General bolted assembly with matching bolts and studs, Steel structure connections, Machinery and equipment assembly
EXECUTION BASIS
Standards and documents.
Confirm the exact standard, edition, material and document scope in the order.
BEFORE QUOTATION
Product questions
What sizes of Serrated Hex Flange Nut do you supply?
Execution standard: DIN 6923. The confirmed specification table covers M6–M16 diameters. Use the specification table to select the exact variant required for quotation.
Which materials, grades and finishes can I order?
Material: Stainless Steel, Carbon Steel; Property class: A2-70, A4-80, 8, 10; Finish: Passivated, Plain, Zinc Plated, Hot Dip Galvanized, Dacromet, Blackened. Availability should be confirmed against the selected specification and order quantity.
What quality documents do you provide with the shipment?
Dimensional inspection report, EN 10204 3.1 material certificate, Certificate of conformity can be provided when the exact document scope is agreed in the quotation or order.
What is the minimum order quantity, and how is it packed?
Confirmed packing options include Inner poly bags, Buyer-branded packaging, Palletized shipment, Bulk carton packing, Small boxes with outer cartons, Fumigation-free pallets, Buyer-specified labels.
Where are these nuts typically used?
Typical applications include General bolted assembly with matching bolts and studs, Steel structure connections, Machinery and equipment assembly. Final suitability depends on the selected material, grade, finish and operating conditions.
What do you need from me to prepare a quotation?
Please provide the required standard, diameter or size, material, property class or grade, finish, quantity, delivery destination. A drawing or sample reference is useful when the requirement is non-standard.
