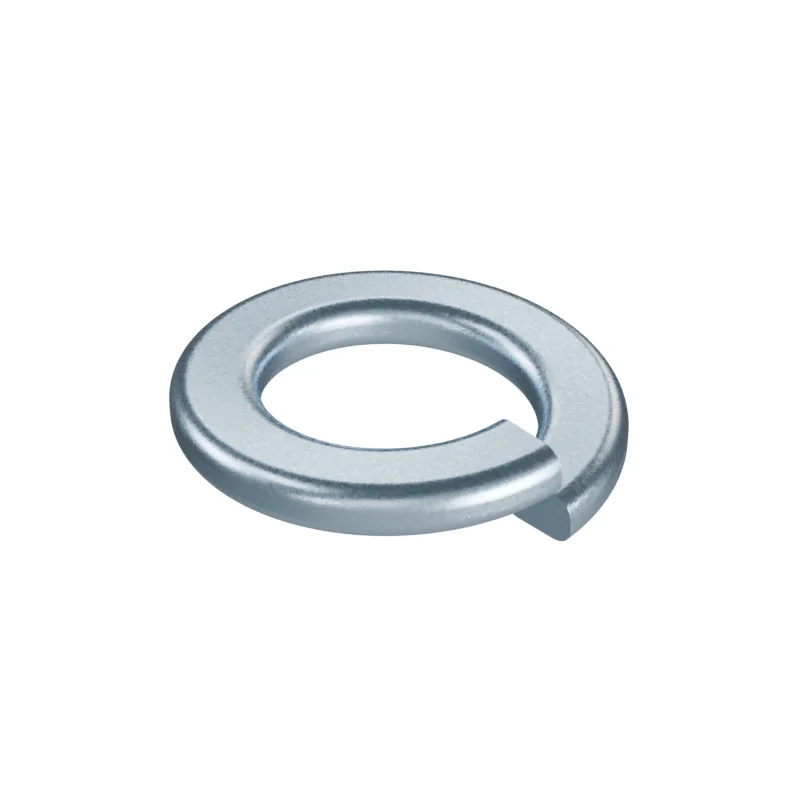

DIN 127 M12 Spring Lock Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M12
mm · DIN 127 · 1987-10 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| d1 | Inner diameter | 12.2 | – | – |
| d2 | Outer diameter | 21.1 | – | – |
| s | Material thickness | 2.5 | – | – |
| Approx. mass | 3.82 | – | – |
- Approx. weight
- ≈ 3.82 kg per 1 000 pieces · Bare steel, before coating and packing.262 pieces per kg
