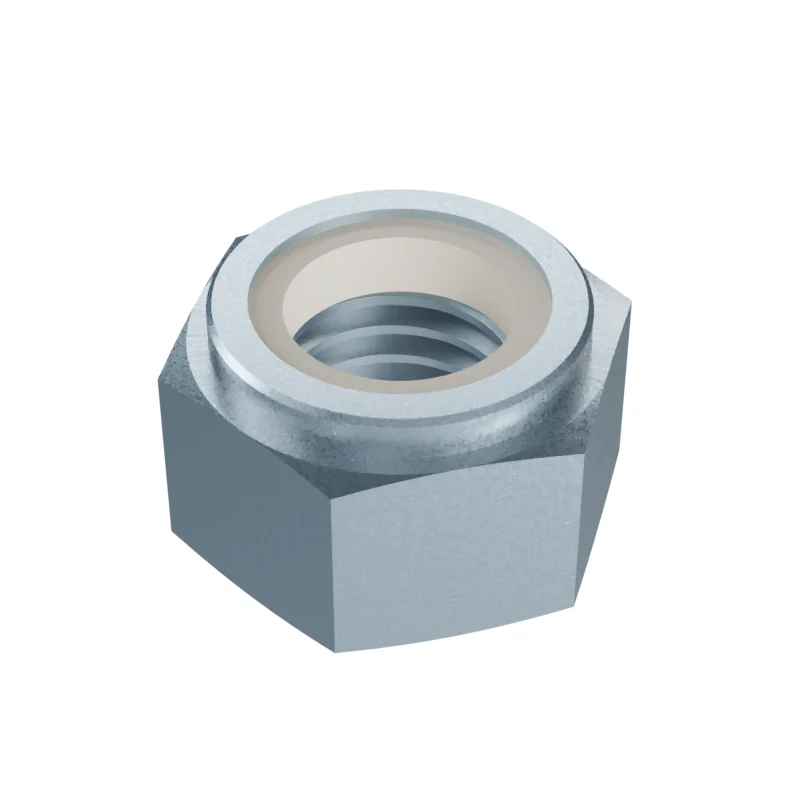

DIN 985 M12 Thin Nylon Insert Lock Nut
In stock in 28 material, grade and finish combinations.
Dimensions at M12
mm · DIN 985 · 1987-05 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 10511 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| s | Width across flats | – | – | 19 | 18 |
| e | Width across corners | – | 21.1 | – | 20.03 |
| h | Nut height | 12 | – | – | 10.23 |
| Approx. mass | 17.2 | – | – | — |
- ISO 10511
- Values in bold differ from DIN 985.
- Approx. weight
- ≈ 17.20 kg per 1 000 pieces · Bare steel, before coating and packing.58.1 pieces per kg
