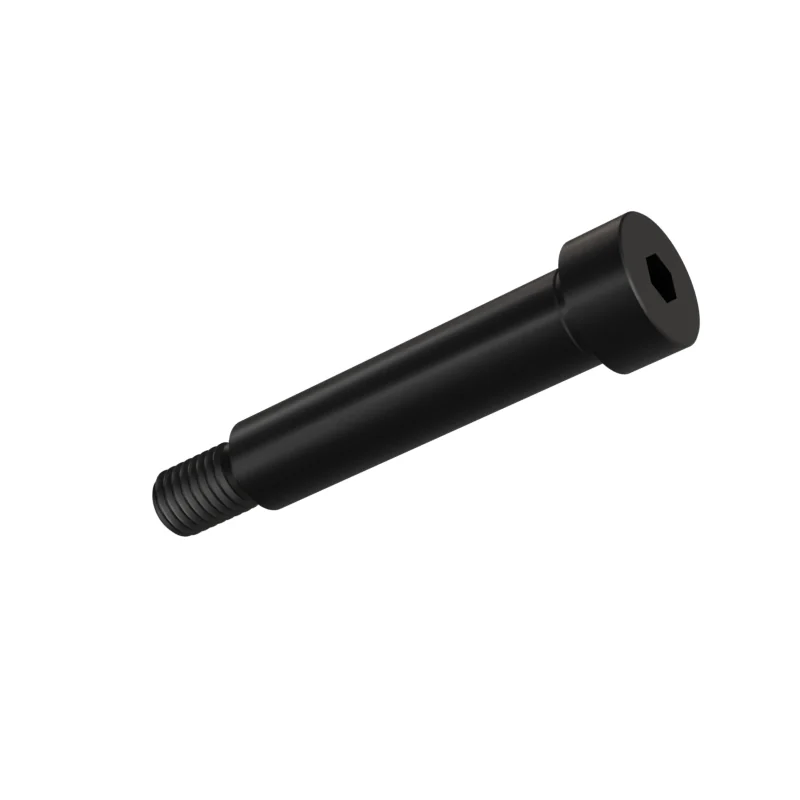

ISO 7379 M10×55 Socket Head Shoulder Screw2 combinations of material, property class and finish supplied in this size.

Standard
ISO 7379 · 1983
Thread
M10 · pitch 1.5 mm
Length under head
55 mm
Clearance / tap drill
10.5 / 11 / 12 mm · 8.5 mm
Weight
31.54 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering31.7 pieces per kg
skdkddslgP
Hexagon Socket Head Shoulder Screw ISO 7379View product
View in 3D
ISO 7379 dimension tablePDF · every size

Order M10×55

Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.

MaterialClassFinishQuantityNet weight
Alloy Steel12.9Blackened—
Alloy Steel12.9Plain—

Dimensions at M10×55

DimensionValue
P1.5 mm
Weight31.54 kg / 1000 pcs
Pieces per kg31.7

Plating adds thickness — state the finish on the order.

Holes for this thread

ISO 273 · ISO 2306
HoleDiameter
Clearance hole10.5 / 11 / 12 mm
Tap drill8.5 mm

Other lengths in M10

All sizes →
Sizekg per 1 000 pieces
M10×4525.80open
M10×5028.67open
M10×5531.54this page
M10×6034.40open
M10×6537.27open

M10 x 16M10 x 20M10 x 25M10 x 30M10 x 35M10 x 40M10 x 45M10 x 50M10 x 60M10 x 65M10 x 70M10 x 80M10 x 90M10 x 100

Parts that mate with M10

matched by thread and pitch
Hex Nut, Style 2 (High) ISO 4033ISO 4033NutHex Nut, Product Grade C ISO 4034ISO 4034NutHexagon Full Nut DIN 934DIN 934NutPlain Washer, Chamfered ISO 7090ISO 7090Washer

StandardsISO 7379All sizes

Quote ISO 7379 M10×55 Socket Head Shoulder Screw

Standard, size, material, finish, quantity and destination are enough to begin.
