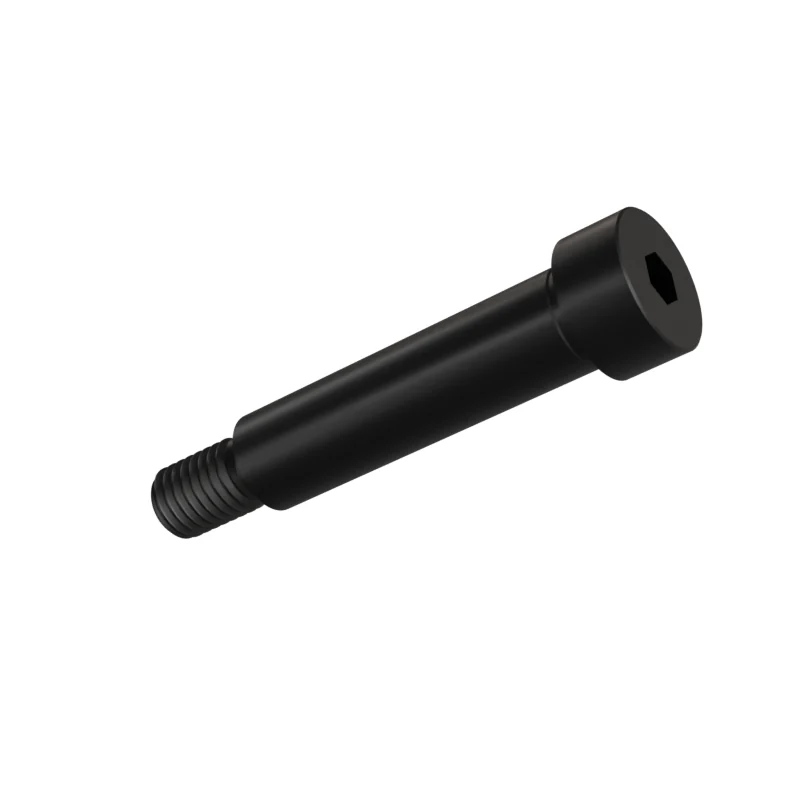

ISO 7379 M10 x 50 Socket Head Shoulder Screw
In stock in 3 material, grade and finish combinations.
Dimensions at M10 x 50
mm · ISO 7379 · 1983 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| P | Thread pitch | 1.5 | – | – |
| l | Length | 50 | – | – |
| ds | Shoulder diameter | 13 | 12.941 | 12.984 |
| b | Effective thread length | – | 15.6 | 16.4 |
| dk | Head diameter | – | 17.73 | 18 |
| k | Head height | – | 8.78 | 9 |
| s | Hex socket size | 6 | – | – |
| t | Socket depth | – | 4.9 | – |
- Shoulder length
- 50 mm · 50–50.25 mm to ISO 7379 product grade A
- Approx. weight
- ≈ 77.11 kg per 1 000 pieces · Bare steel, before coating and packing.13.0 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
