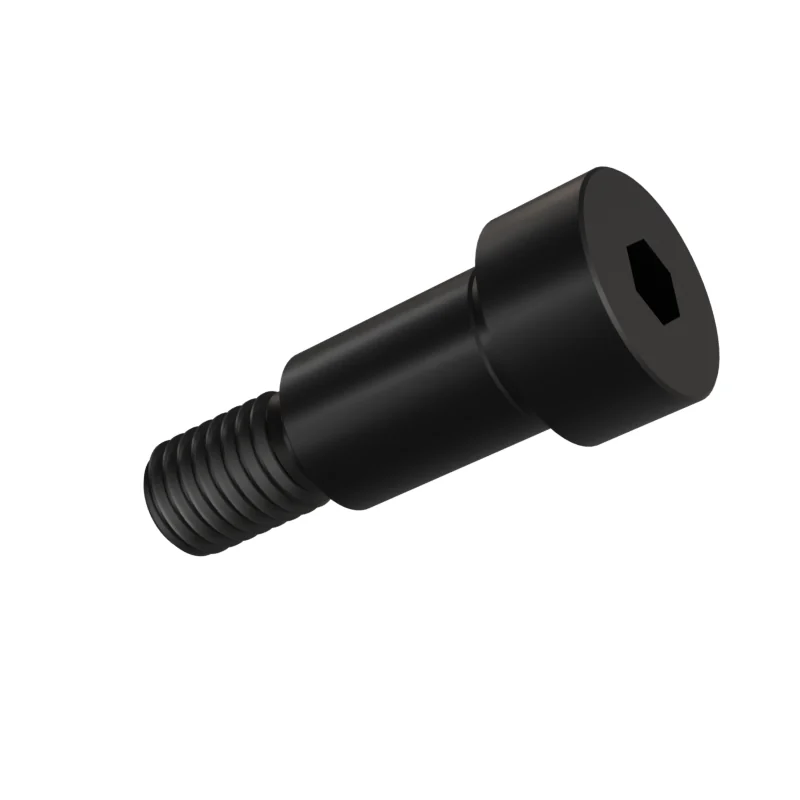

ISO 7379 M10×20 Socket Head Shoulder Screw3 combinations of material, property class and finish supplied in this size.

Standard
ISO 7379 · 1983
Thread
M10 · pitch 1.5 mm
Length under head
20 mm
Clearance / tap drill
10.5 / 11 / 12 mm · 8.5 mm
Weight
11.47 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering87.2 pieces per kg
skdkddslgP
Hexagon Socket Head Shoulder Screw ISO 7379View product
View in 3D
ISO 7379 dimension tablePDF · every size

Order M10×20

Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.

MaterialClassFinishQuantityNet weight
Alloy Steel12.9Blackened—
Alloy Steel12.9Plain—
Stainless SteelA2-70Plain—

Dimensions at M10×20

DimensionValue
P1.5 mm
Weight11.47 kg / 1000 pcs
Pieces per kg87.2

Plating adds thickness — state the finish on the order.

Holes for this thread

ISO 273 · ISO 2306
HoleDiameter
Clearance hole10.5 / 11 / 12 mm
Tap drill8.5 mm

Other lengths in M10

All sizes →
Sizekg per 1 000 pieces
M10×169.17open
M10×2011.47this page
M10×2514.33open
M10×3017.20open
M10×3520.07open

M10 x 16M10 x 25M10 x 30M10 x 35M10 x 40M10 x 45M10 x 50M10 x 55M10 x 60M10 x 65M10 x 70M10 x 80M10 x 90M10 x 100

Parts that mate with M10

matched by thread and pitch
Hex Nut, Style 2 (High) ISO 4033ISO 4033NutHex Nut, Product Grade C ISO 4034ISO 4034NutHexagon Full Nut DIN 934DIN 934NutPlain Washer, Chamfered ISO 7090ISO 7090Washer

StandardsISO 7379All sizes

Quote ISO 7379 M10×20 Socket Head Shoulder Screw

Standard, size, material, finish, quantity and destination are enough to begin.
