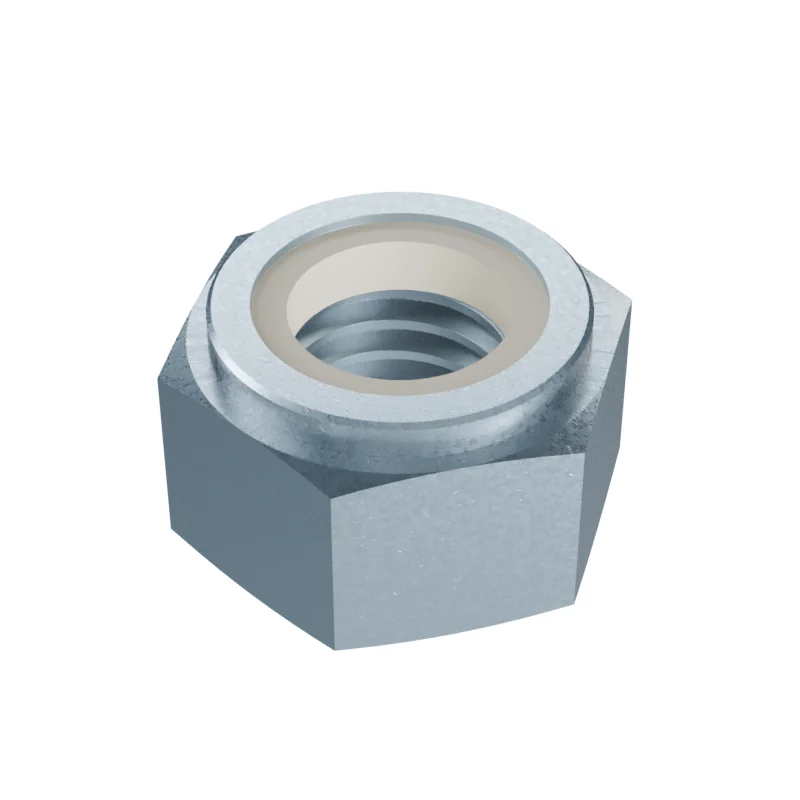

DIN 985 M8 Thin Nylon Insert Lock Nut
In stock in 28 material, grade and finish combinations.
Dimensions at M8
mm · DIN 985 · 1987-05 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 10511 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| P | Thread pitch | 1.25 | – | – | 1.25 |
| s | Width across flats | – | – | 13 | 13 |
| e | Width across corners | – | 14.38 | – | 14.38 |
| h | Nut height | 8 | – | – | 6.76 |
| Approx. mass | 5.1 | – | – | — |
- ISO 10511
- Values in bold differ from DIN 985.
- Approx. weight
- ≈ 5.10 kg per 1 000 pieces · Bare steel, before coating and packing.196 pieces per kg
