FASTENER STANDARD
M16

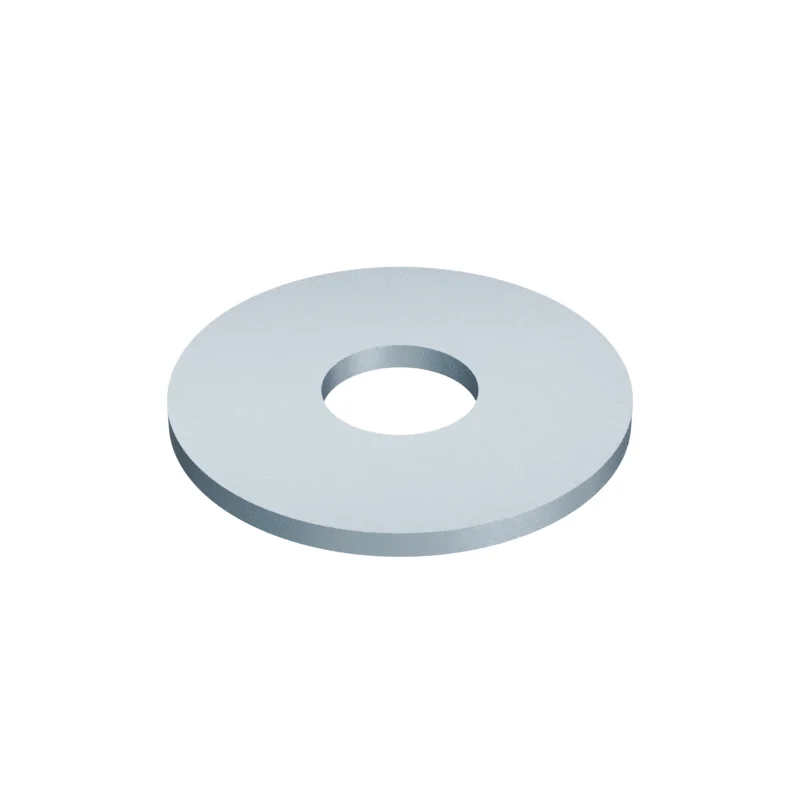

Plain Washer — Large Series — DIN 9021 / ISO 7093-1 / GB/T 96
M16 is listed in the confirmed supply specifications of the products shown below. Dimensions are referenced against DIN 9021 / ISO 7093-1 / GB/T 96; where these standards differ, both values are shown so the correct one can be confirmed before ordering. Packing quantity, stock status and mechanical property class are confirmed in the quotation. Column symbols: d1 = inside diameter; d2 = outside diameter; h = thickness; d1 max = inside diameter, maximum; d2 min = outside diameter, minimum; h max = thickness, maximum; h min = thickness, minimum.
Edition to confirm · Specification| Standard | Status | d1 (mm) | d2 (mm) | h (mm) | massKgPer1000 (mm) | d1 max (mm) | d2 min (mm) | h max (mm) | h min (mm) |
|---|---|---|---|---|---|---|---|---|---|
| DIN 9021 | Historical | 17 | 50 | 3 | 40.9 | - | - | - | - |
| ISO 7093-1 | Current | 17 | 50 | 3 | - | - | - | - | - |
| GB/T 96 | Current | 17 | 50 | 3 | - | - | - | - | - |
| ISO 7093-2 | Current | 17.5 | 50 | 3 | - | 17.93 | 48.4 | 3.6 | 2.4 |
Compare before substituting
DIN 9021 →ISO 7093-1GB/T 96ISO 7093-2ISO 7093-2 / M16 / d1: ISO 7093-1 17 · ISO 7093-2 17.5
