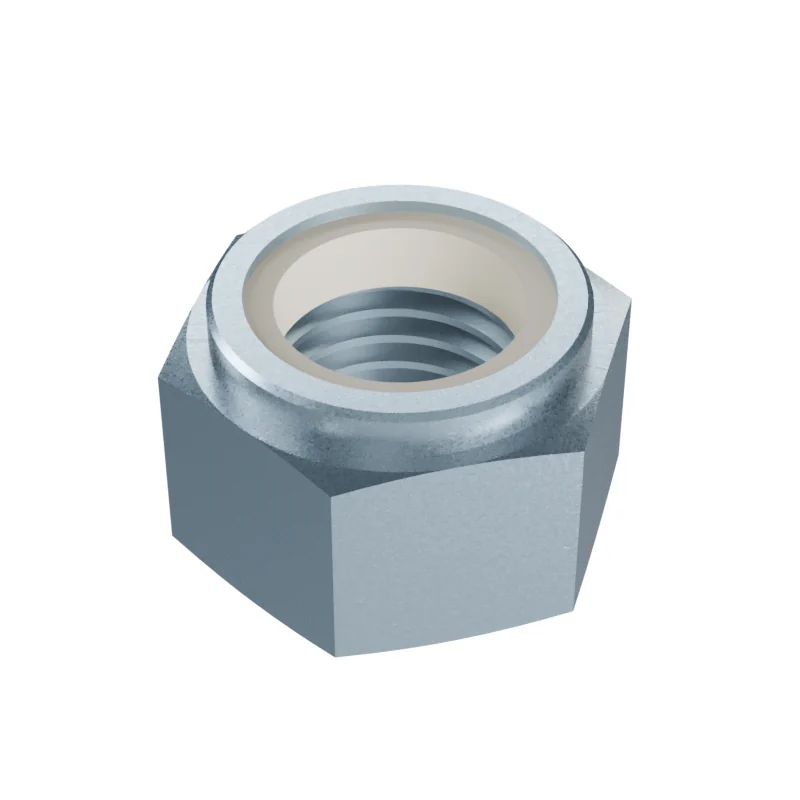

DIN 985 M16 Thin Nylon Insert Lock Nut
In stock in 28 material, grade and finish combinations.
Dimensions at M16
mm · DIN 985 · 1987-05 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 10511 | |
|---|---|---|---|---|---|
| d | Thread size | M16 | – | – | M16 |
| P | Thread pitch | 2 | – | – | 2 |
| s | Width across flats | – | – | 24 | 24 |
| e | Width across corners | – | 26.75 | – | 26.75 |
| h | Nut height | 16 | – | – | 12.42 |
| Approx. mass | 34 | – | – | — |
- ISO 10511
- Values in bold differ from DIN 985.
- Approx. weight
- ≈ 34.00 kg per 1 000 pieces · Bare steel, before coating and packing.29.4 pieces per kg
