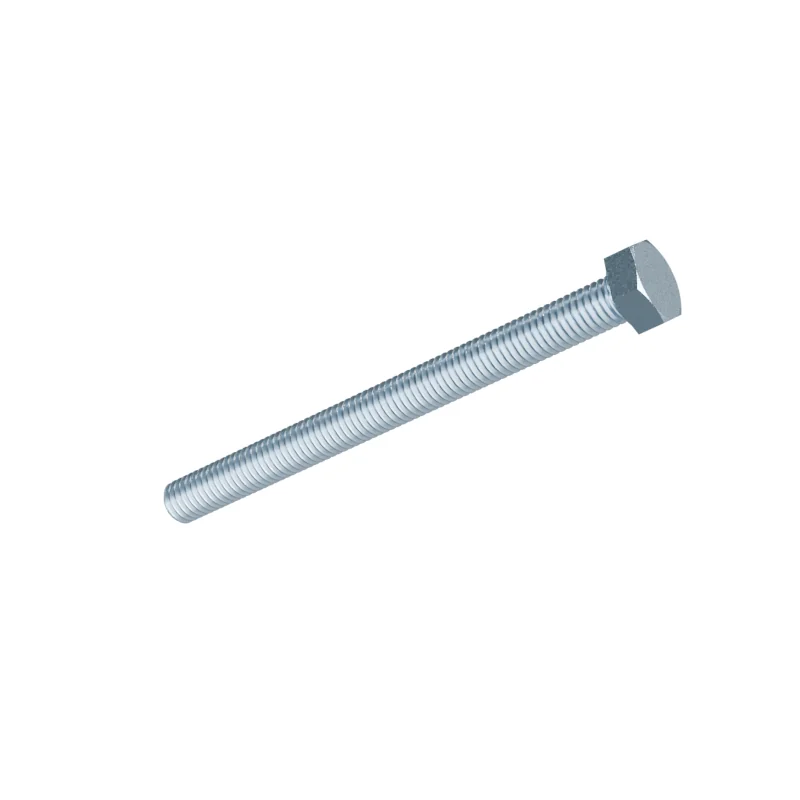

DIN 933 M5 x 60 Fully Threaded Hex Bolt
In stock in 12 material, grade and finish combinations.
Dimensions at M5 x 60
mm · DIN 933 · 1987-09 · withdrawn| Dimension | Nominal | Min | Max | ISO 4017 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| l | Length | 60 | – | – | 60 |
| a | Thread runout | – | – | 2.4 | — |
| c | Washer height | – | 0.15 | 0.5 | — |
| da | Underhead diameter | – | – | 5.7 | — |
| dw | Bearing diameter | – | 6.7 | – | — |
| e | Width across corners | – | 8.63 | – | 8.79 |
| k | Head height | 3.5 | 3.26 | 3.74 | 3.5 |
| k' | Wrenching height | – | 2.28 | – | — |
| r | Radius | – | 0.2 | – | — |
| s | Width across flats | – | 7.64 | 8 | 8 |
- ISO 4017
- Values in bold differ from DIN 933.
- Length under head
- 60 mm · 58.5–61.5 mm to DIN 933 product grade B
- Approx. weight
- ≈ 8.83 kg per 1 000 pieces · Bare steel, before coating and packing.113 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
