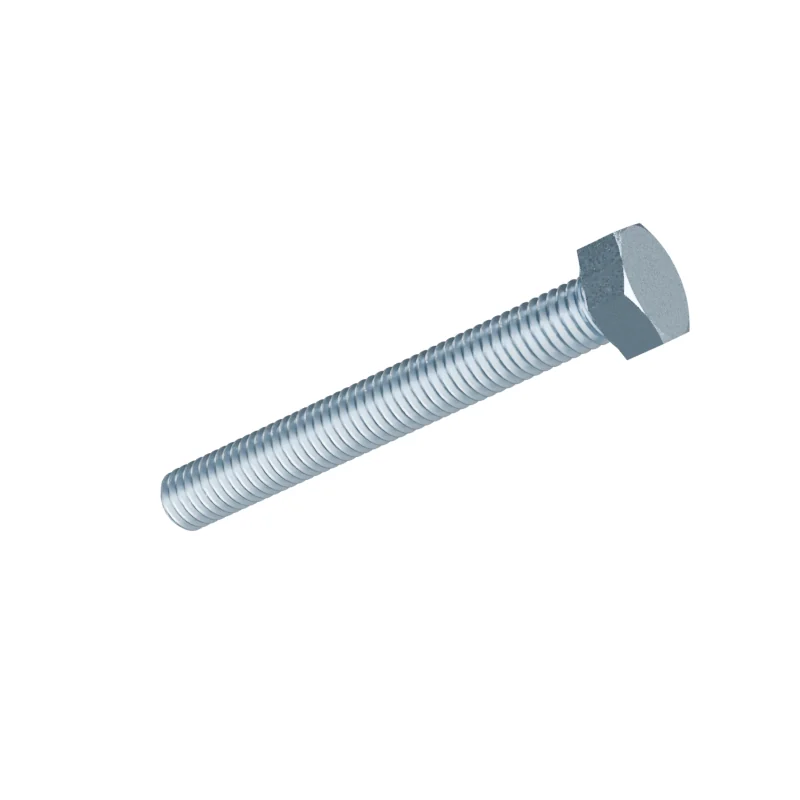

DIN 933 M5 x 40 Fully Threaded Hex Bolt
In stock in 12 material, grade and finish combinations.
Dimensions at M5 x 40
mm · DIN 933 · 1987-09 · withdrawn| Dimension | Nominal | Min | Max | ISO 4017 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| l | Length | 40 | – | – | 40 |
| a | Thread runout | – | – | 2.4 | 2.4 |
| c | Washer height | – | 0.15 | 0.5 | 0.15–0.5 |
| da | Underhead diameter | – | – | 5.7 | 5.7 |
| dw | Bearing diameter | – | 6.9 | – | 7.2 |
| e | Width across corners | – | 8.79 | – | 8.79 |
| k | Head height | 3.5 | 3.35 | 3.65 | 3.35–3.65 |
| k' | Wrenching height | – | 2.28 | – | — |
| r | Radius | – | 0.2 | – | 0.2 |
| s | Width across flats | – | 7.78 | 8 | 7.78–8 |
- ISO 4017
- Values in bold differ from DIN 933.
- Length under head
- 40 mm · 39.5–40.5 mm to DIN 933 product grade A
- Approx. weight
- ≈ 6.35 kg per 1 000 pieces · Bare steel, before coating and packing.157 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
