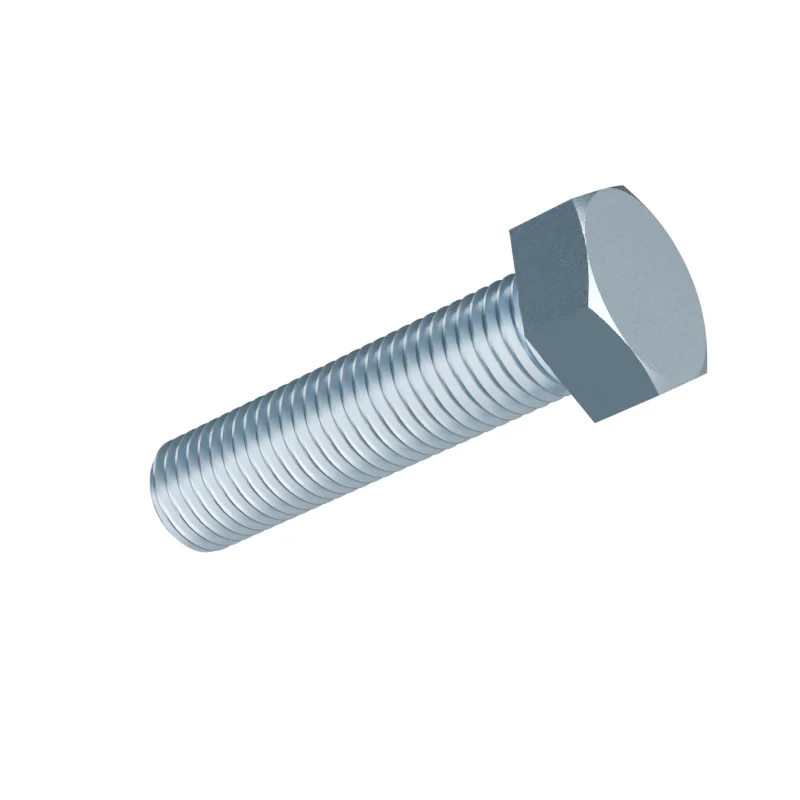

DIN 933 M24 x 95 Fully Threaded Hex Bolt
In stock in 6 material, grade and finish combinations.
Dimensions at M24 x 95
mm · DIN 933 · 1987-09 · withdrawn| Dimension | Nominal | Min | Max | ISO 4017 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| l | Length | 95 | – | – | 95 |
| a | Thread runout | – | – | 9 | 9 |
| c | Washer height | – | 0.2 | 0.8 | 0.2–0.8 |
| da | Underhead diameter | – | – | 26.4 | 26.4 |
| dw | Bearing diameter | – | 33.6 | – | 33.61 |
| e | Width across corners | – | 39.98 | – | 39.98 |
| k | Head height | 15 | 14.78 | 15.22 | 14.785–15.215 |
| k' | Wrenching height | – | 10.3 | – | — |
| r | Radius | – | 0.8 | – | 0.8 |
| s | Width across flats | – | 35.38 | 36 | 35.38–36 |
- ISO 4017
- Values in bold differ from DIN 933.
- Length under head
- 95 mm · 94.3–95.7 mm to DIN 933 product grade A
- Approx. weight
- ≈ 408.00 kg per 1 000 pieces · Bare steel, before coating and packing.2.5 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine25 mm
Clearance hole · medium26 mm
Clearance hole · coarse28 mm
Tap drill21 mm
