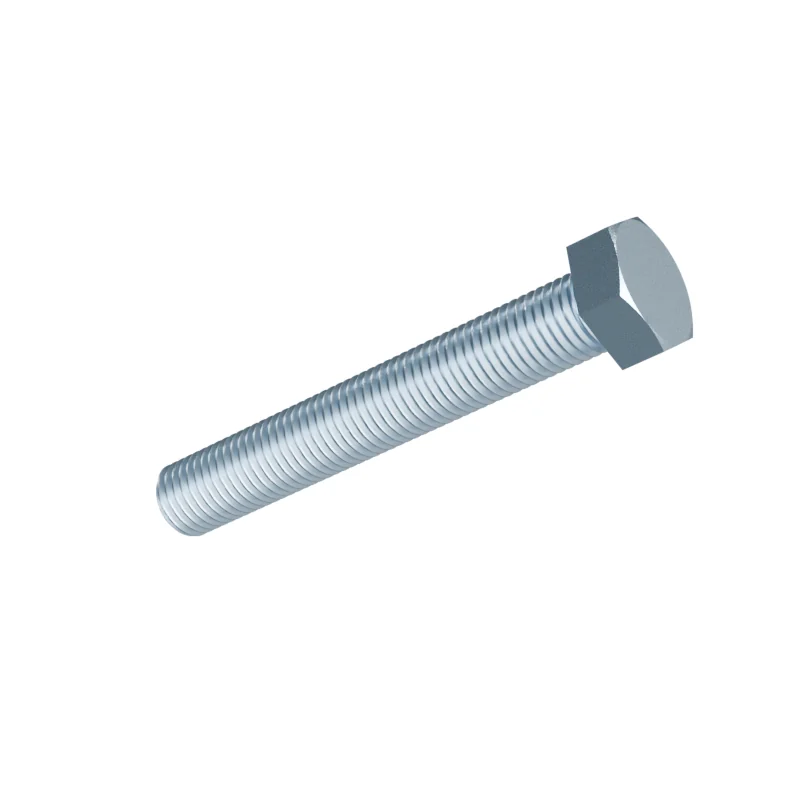

DIN 933 M24 x 160 Fully Threaded Hex Bolt
In stock in 6 material, grade and finish combinations.
Dimensions at M24 x 160
mm · DIN 933 · 1987-09 · withdrawn| Dimension | Nominal | Min | Max | ISO 4017 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| l | Length | 160 | – | – | 160 |
| a | Thread runout | – | – | 9 | 9 |
| c | Washer height | – | 0.2 | 0.8 | 0.2–0.8 |
| da | Underhead diameter | – | – | 26.4 | 26.4 |
| dw | Bearing diameter | – | 33.2 | – | 33.25 |
| e | Width across corners | – | 39.55 | – | 39.55 |
| k | Head height | 15 | 14.65 | 15.35 | 14.65–15.35 |
| k' | Wrenching height | – | 10.3 | – | — |
| r | Radius | – | 0.8 | – | 0.8 |
| s | Width across flats | – | 35 | 36 | 35–36 |
- ISO 4017
- Values in bold differ from DIN 933.
- Length under head
- 160 mm · 158–162 mm to DIN 933 product grade B
- Approx. weight
- ≈ 602.00 kg per 1 000 pieces · Bare steel, before coating and packing.1.7 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine25 mm
Clearance hole · medium26 mm
Clearance hole · coarse28 mm
Tap drill21 mm
