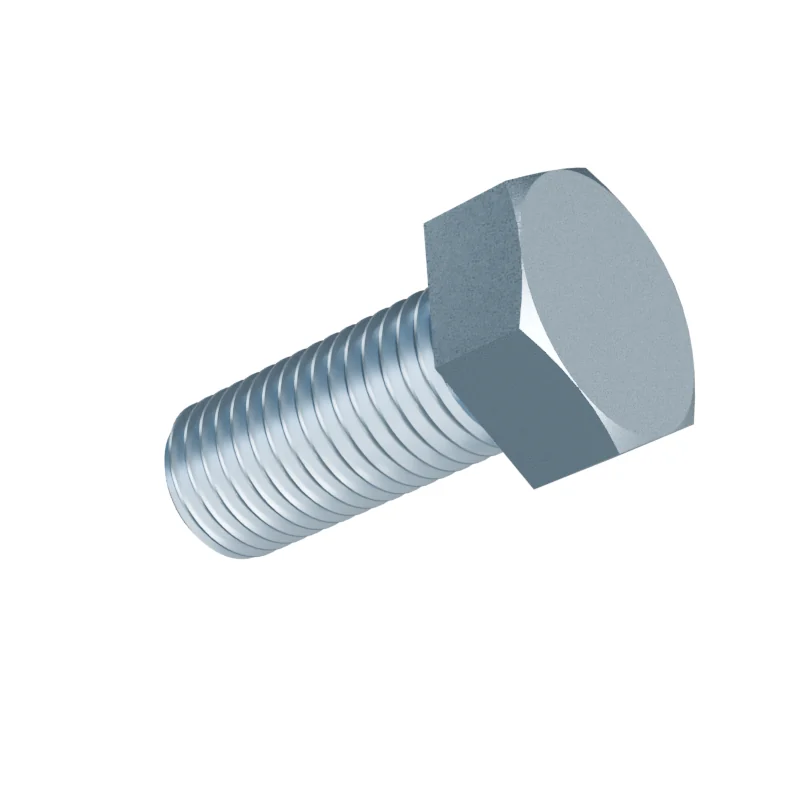

DIN 933 M24×55 Fully Threaded Hex Bolt8 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 933 · 1987-09
- Thread
- M24 · pitch 3 mm
- Length under head
- 55 mm · 54.4–55.6 mm to DIN 933 product grade A
- Drive
- 36 mm spanner · e 39.98 mm
- Head height
- 15 mm
- Clearance / tap drill
- 25 / 26 / 28 mm · 21 mm
- Weight
- 289.00 kg per 1 000 pieces · From the standard's published table3.5 pieces per kg
Supplied to DIN 933 M24×55 — the figures shown here match GB/T 5783. 2 record the same figures in this size. ISO 4017 (dw 33.61 mm against 33.6) does not. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M24×55
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M24×55 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8.8 | Plain | — | |
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Hot Dip Galvanized | — | |
| Alloy Steel | 10.9 | Plain | — | |
| Alloy Steel | 10.9 | Zinc Plated | — | |
| Alloy Steel | 10.9 | Hot Dip Galvanized | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A4-80 | Plain | — |
Dimensions at M24×55
| Dimension | Value |
|---|---|
| P | 3 mm |
| s | 36 mm |
| e | 39.98 mm |
| k | 15 mm |
| Weight | 289.00 kg / 1000 pcs |
| Pieces per kg | 3.5 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 25 / 26 / 28 mm |
| Tap drill | 21 mm |
