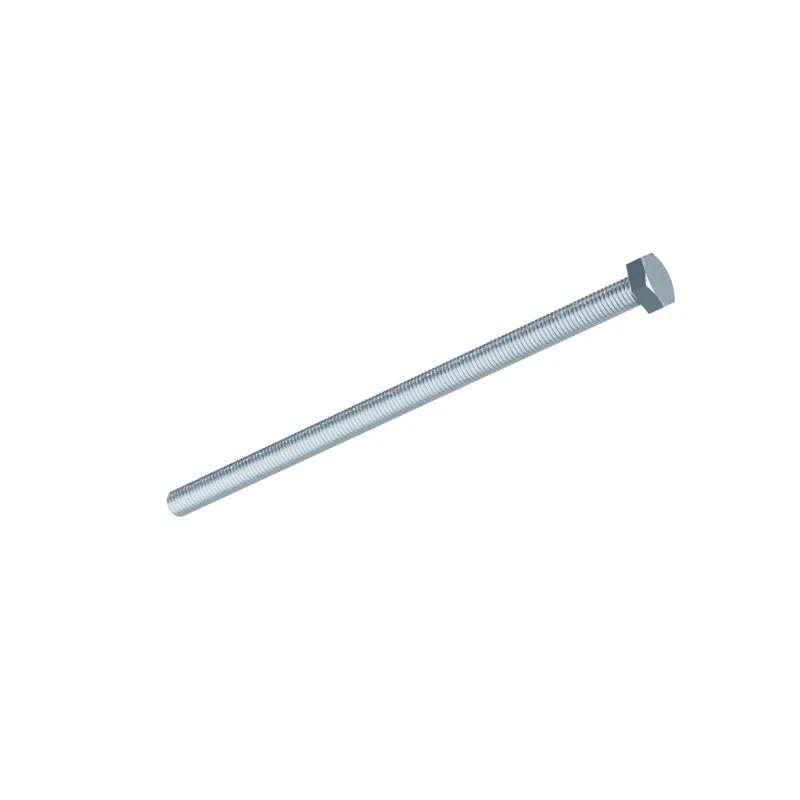

DIN 933 M10 x 200 Fully Threaded Hex Bolt
In stock in 16 material, grade and finish combinations.
Dimensions at M10 x 200
mm · DIN 933 · 1987-09 · withdrawn| Dimension | Nominal | Min | Max | ISO 4017 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| l | Length | 200 | – | – | 200 |
| a | Thread runout | – | – | 4.5 | — |
| c | Washer height | – | 0.15 | 0.6 | — |
| da | Underhead diameter | – | – | 11.2 | — |
| dw | Bearing diameter | – | 15.4 | – | — |
| e | Width across corners | – | 18.72 | – | 17.77 |
| k | Head height | 6.4 | 6.11 | 6.69 | 6.4 |
| k' | Wrenching height | – | 4.28 | – | — |
| r | Radius | – | 0.4 | – | — |
| s | Width across flats | – | 16.57 | 17 | 16 |
- ISO 4017
- Values in bold differ from DIN 933.
- Length under head
- 200 mm · 197.7–202.3 mm to DIN 933 product grade B
- Approx. weight
- ≈ 112.58 kg per 1 000 pieces · Bare steel, before coating and packing.8.9 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
