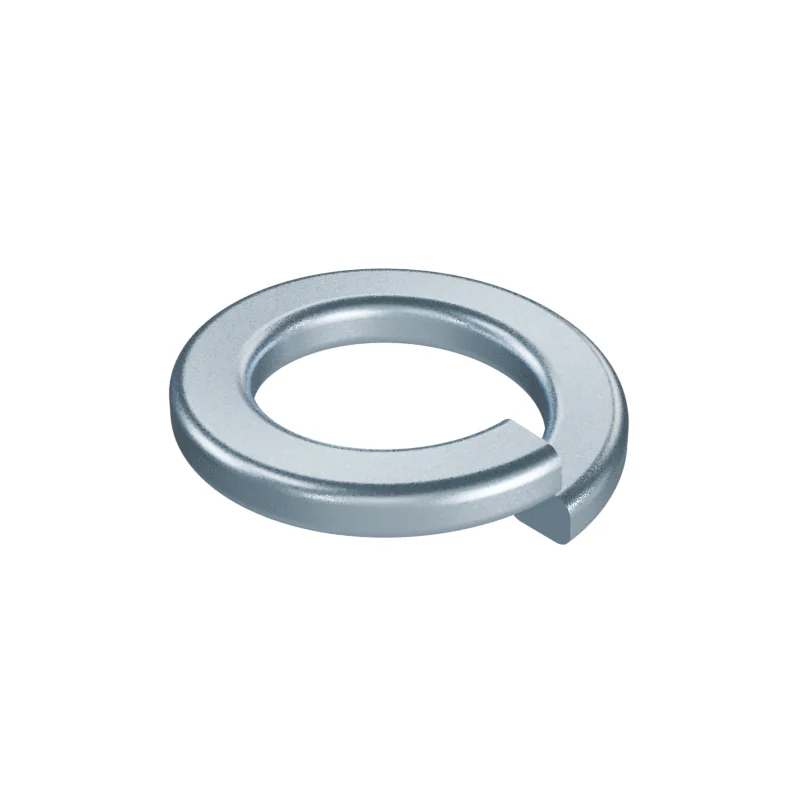

DIN 127 M24 Spring Lock Washer
In stock in 4 material, grade and finish combinations.
Dimensions at M24
mm · DIN 127 · 1987-10 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M24 | – | – |
| d1 | Inner diameter | 24.5 | – | – |
| d2 | Outer diameter | 40 | – | – |
| s | Material thickness | 5 | – | – |
| Approx. mass | 26.2 | – | – |
- Approx. weight
- ≈ 26.20 kg per 1 000 pieces · Bare steel, before coating and packing.38.2 pieces per kg
