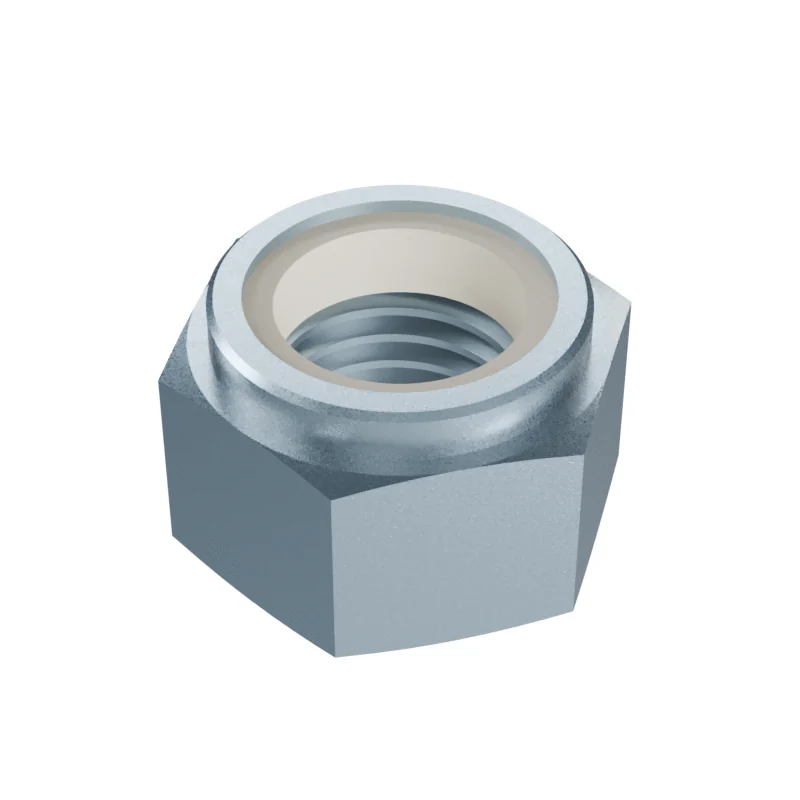

DIN 985 M24 Thin Nylon Insert Lock Nut
In stock in 26 material, grade and finish combinations.
Dimensions at M24
mm · DIN 985 · 1987-05 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 10511 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| s | Width across flats | – | – | 36 | 36 |
| e | Width across corners | – | 39.55 | – | 39.55 |
| h | Nut height | 24 | – | – | 17.8 |
| Approx. mass | 100 | – | – | — |
- ISO 10511
- Values in bold differ from DIN 985.
- Approx. weight
- ≈ 100.00 kg per 1 000 pieces · Bare steel, before coating and packing.10.0 pieces per kg
