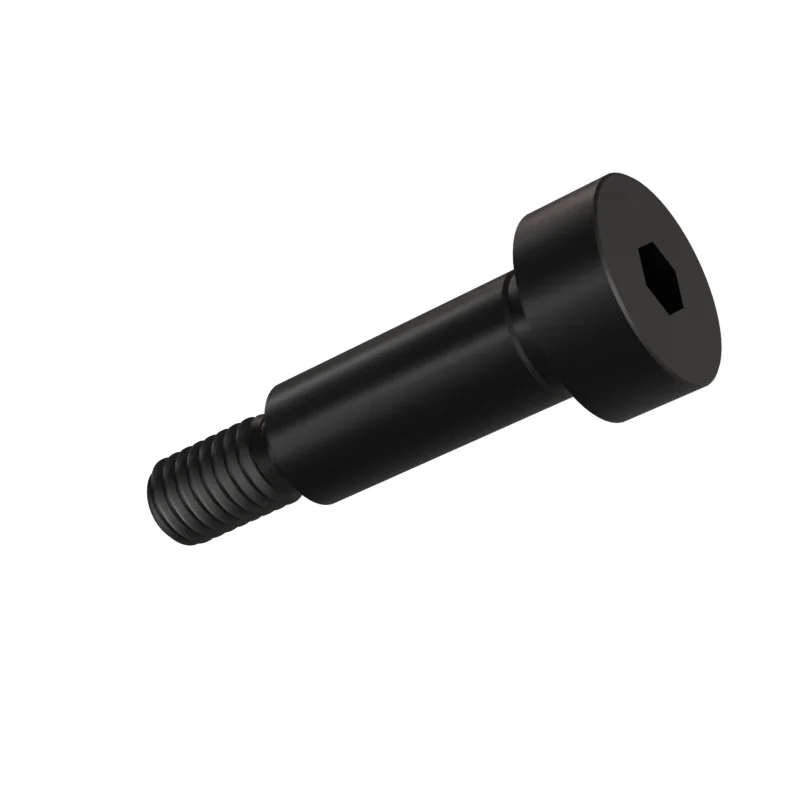

ISO 7379 M6×20 Socket Head Shoulder Screw3 combinations of material, property class and finish supplied in this size.

Standard
ISO 7379 · 1983
Thread
M6 · pitch 1 mm
Length under head
20 mm
Clearance / tap drill
6.4 / 6.6 / 7 mm · 5 mm
Weight
4.13 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering242 pieces per kg
skdkddslgP
Hexagon Socket Head Shoulder Screw ISO 7379View product
View in 3D
ISO 7379 dimension tablePDF · every size

Order M6×20

Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.

MaterialClassFinishQuantityNet weight
Alloy Steel12.9Blackened—
Alloy Steel12.9Plain—
Stainless SteelA2-70Plain—

Dimensions at M6×20

DimensionValue
P1 mm
Weight4.13 kg / 1000 pcs
Pieces per kg242

Plating adds thickness — state the finish on the order.

Holes for this thread

ISO 273 · ISO 2306
HoleDiameter
Clearance hole6.4 / 6.6 / 7 mm
Tap drill5 mm

Other lengths in M6

All sizes →
Sizekg per 1 000 pieces
M6×163.30open
M6×204.13this page
M6×255.16open
M6×306.19open
M6×357.22open

M6 x 16M6 x 25M6 x 30M6 x 35M6 x 40M6 x 45M6 x 50M6 x 55M6 x 60M6 x 65M6 x 70M6 x 80M6 x 90M6 x 100

Parts that mate with M6

matched by thread and pitch
Hex Nut, Style 2 (High) ISO 4033ISO 4033NutHex Nut, Product Grade C ISO 4034ISO 4034NutHexagon Full Nut DIN 934DIN 934NutPlain Washer, Chamfered ISO 7090ISO 7090Washer

StandardsISO 7379All sizes

Quote ISO 7379 M6×20 Socket Head Shoulder Screw

Standard, size, material, finish, quantity and destination are enough to begin.
