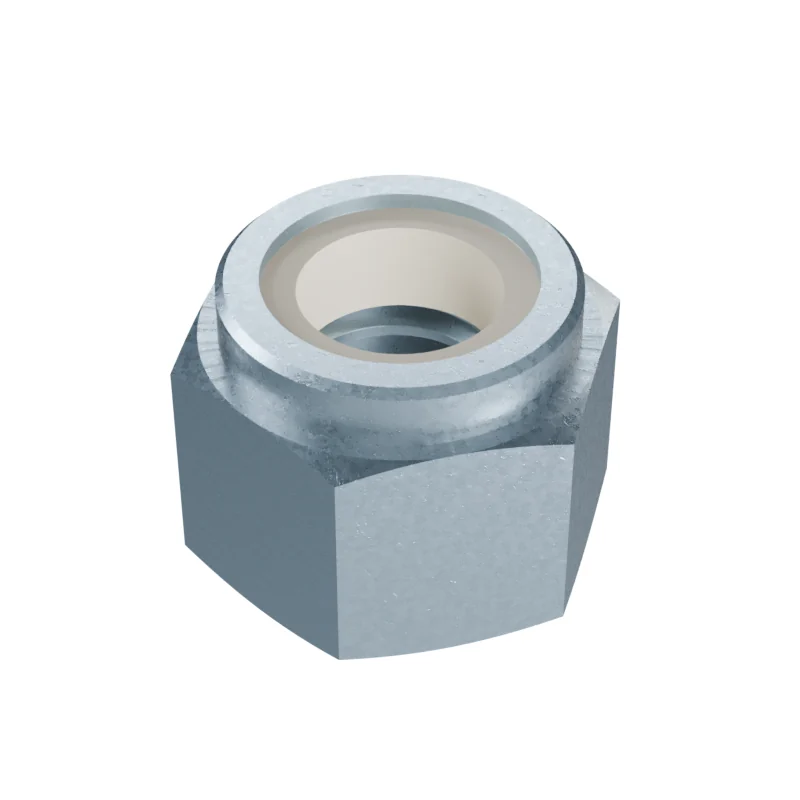

DIN 982 M6 Nylon Insert Lock Nut
In stock in 14 material, grade and finish combinations.
Dimensions at M6
mm · DIN 982 · 1987-05 · withdrawn| Dimension | Nominal | Min | Max | ISO 7040 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| da | Underhead diameter | – | – | 6.75 | 6.75 |
| da | Clearance diameter | – | 6 | – | 6 |
| dw | Bearing diameter | – | 8.9 | – | 8.88 |
| e | Width across corners | – | 11.05 | – | 11.05 |
| h | Overall height | – | 7.7 | 8 | 7.42–8 |
| m | Thread height | – | 4.9 | – | 4.9 |
| m' | Wrenching height | – | 3.92 | – | 3.92 |
| s | Width across flats | – | 9.78 | 10 | 9.78–10 |
- ISO 7040
- Values in bold differ from DIN 982.
- Approx. weight
- ≈ 3.10 kg per 1 000 pieces · Bare steel, before coating and packing.323 pieces per kg
