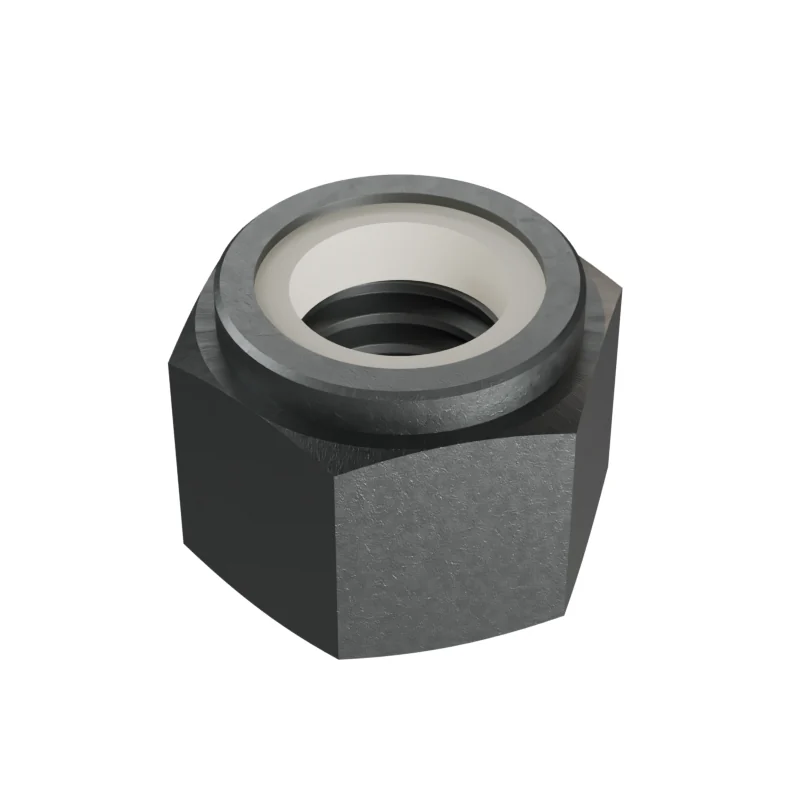

DIN 982 M5 Nylon Insert Lock Nut
In stock in 14 material, grade and finish combinations.
Dimensions at M5
mm · DIN 982 · 1987-05 · withdrawn| Dimension | Nominal | Min | Max | ISO 7040 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| da | Underhead diameter | – | – | 5.75 | 5.75 |
| da | Clearance diameter | – | 5 | – | 5 |
| dw | Bearing diameter | – | 6.9 | – | 6.88 |
| e | Width across corners | – | 8.79 | – | 8.79 |
| h | Overall height | – | 6 | 6.3 | 6.22–6.8 |
| m | Thread height | – | 4.4 | – | 4.4 |
| m' | Wrenching height | – | 3.52 | – | 3.52 |
| s | Width across flats | – | 7.78 | 8 | 7.78–8 |
- ISO 7040
- Values in bold differ from DIN 982.
- Approx. weight
- ≈ 1.40 kg per 1 000 pieces · Bare steel, before coating and packing.714 pieces per kg
