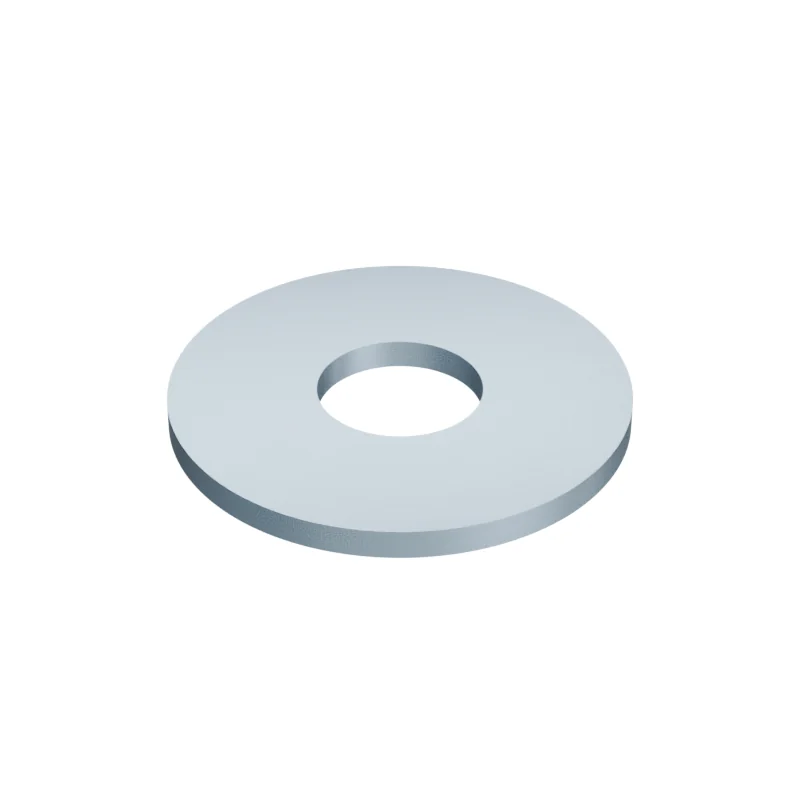

DIN 9021 M30 Large Series Plain Washer14 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 9021
- Thread
- M30
- Weight
- 273.00 kg per 1 000 pieces · From the standard's published table3.7 pieces per kg
Supplied to DIN 9021 M30 — the figures shown here match ISO 7093-1. All 2 record the same figures in this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M30
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
Every standard listed here records the same figures at M30. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 200 HV | Zinc Plated | — | |
| Carbon Steel | 200 HV | Hot Dip Galvanized | — | |
| Carbon Steel | 200 HV | Dacromet | — | |
| Carbon Steel | 200 HV | Plain | — | |
| Carbon Steel | 300 HV | Zinc Plated | — | |
| Carbon Steel | 300 HV | Hot Dip Galvanized | — | |
| Carbon Steel | 300 HV | Dacromet | — | |
| Carbon Steel | 300 HV | Plain | — | |
| Stainless Steel | 140 HV | Plain | — | |
| Stainless Steel | 140 HV | Passivated | — | |
| Stainless Steel | 200 HV | Plain | — | |
| Stainless Steel | 200 HV | Passivated | — | |
| Stainless Steel | 300 HV | Plain | — | |
| Stainless Steel | 300 HV | Passivated | — |
Dimensions at M30
| Dimension | Value |
|---|---|
| h | - mm |
| Weight | 273.00 kg / 1000 pcs |
| Pieces per kg | 3.7 |
Plating adds thickness — state the finish on the order.
