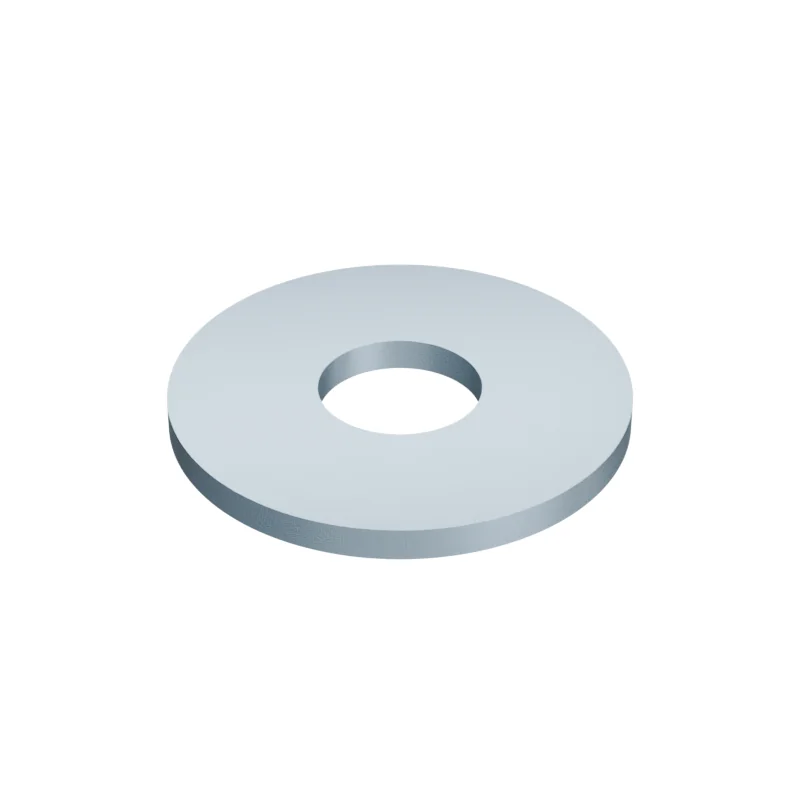

DIN 9021 M36 Large Series Plain Washer
In stock in 14 material, grade and finish combinations.
Dimensions at M36
mm · DIN 9021 · 1990-03 · withdrawn| Dimension | Nominal | Min | Max | ISO 7093-1 | |
|---|---|---|---|---|---|
| d | Thread size | M36 | – | – | M36 |
| d1 | Inner diameter | 39 | – | – | 39 |
| d2 | Outer diameter | 110 | – | – | 110 |
| h | Washer thickness | 8 | – | – | 7–9 |
| Approx. mass | 522 | – | – | — |
- ISO 7093-1
- Values in bold differ from DIN 9021.
- Approx. weight
- ≈ 522.00 kg per 1 000 pieces · Bare steel, before coating and packing.1.9 pieces per kg
