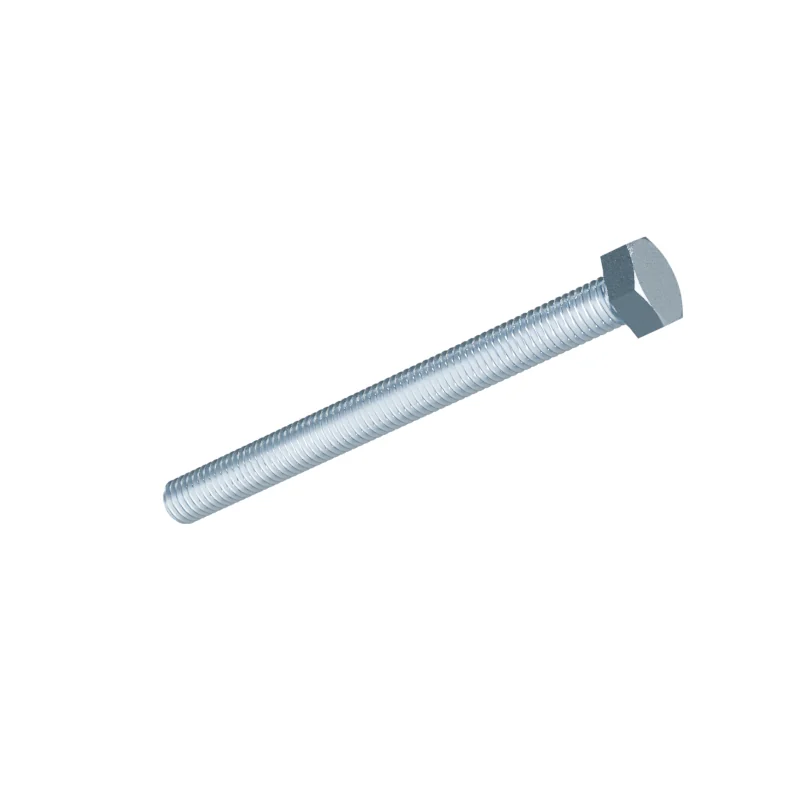

DIN 933 M8×90 Fully Threaded Hex Bolt16 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 933 · 1987-09
- Thread
- M8 · pitch 1.25 mm
- Length under head
- 90 mm · 88.25–91.75 mm to DIN 933 product grade B
- Drive
- 13 mm spanner · e 14.2 mm
- Head height
- 5.3 mm
- Clearance / tap drill
- 8.4 / 9 / 10 mm · 6.8 mm
- Weight
- 34.60 kg per 1 000 pieces · From the standard's published table28.9 pieces per kg
Supplied to DIN 933 M8×90. ISO 4017 (e 14.38 mm against 14.2) and GB/T 5783 (e 14.38 mm against 14.2) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M8×90
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M8×90 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8.8 | Dacromet | — | |
| Carbon Steel | 8.8 | Blackened | — | |
| Carbon Steel | 8.8 | Phosphate | — | |
| Carbon Steel | 8.8 | Plain | — | |
| Alloy Steel | 10.9 | Zinc Plated | — | |
| Alloy Steel | 10.9 | Hot Dip Galvanized | — | |
| Alloy Steel | 10.9 | Dacromet | — | |
| Alloy Steel | 10.9 | Blackened | — | |
| Alloy Steel | 10.9 | Phosphate | — | |
| Alloy Steel | 10.9 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M8×90
| Dimension | Value |
|---|---|
| P | 1.25 mm |
| s | 13 mm |
| e | 14.2 mm |
| k | 5.3 mm |
| Weight | 34.60 kg / 1000 pcs |
| Pieces per kg | 28.9 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 8.4 / 9 / 10 mm |
| Tap drill | 6.8 mm |
Other lengths in M8
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M8×70 | 28.20 | open |
| M8×75 | 29.80 | open |
| M8×80 | 31.40 | open |
| M8×90 | 34.60 | this page |
| M8×100 | 37.70 | open |
