FASTENER STANDARD

M20 x 90

Hexagon Head Screw — Fully Threaded — DIN 933 / ISO 4017 / GB/T 5783

M20 x 90 is listed in the confirmed supply specifications of the products shown below. Dimensions are referenced against DIN 933 / ISO 4017 / GB/T 5783; where these standards differ, both values are shown so the correct one can be confirmed before ordering. Packing quantity, stock status and mechanical property class are confirmed in the quotation. Column symbols: P = thread pitch; s = width across flats; e = width across corners; k = head height.

Edition to confirm · Specification

StandardM20 x 90

CategoryHexagon Head Screw — Fully Threaded

VerificationVerified dimensional data

Standard	Status	P (mm)	s (mm)	e (mm)	k (mm)
DIN 933	Historical	2.5	30	33.53	12.5
ISO 4017	Current	2.5	30	33.53	12.5
GB/T 5783	Current	2.5	30	33.53	12.5

Compare before substituting

DIN 933 →ISO 4017GB/T 5783ISO 4018

Products using M20 x 90

1 products

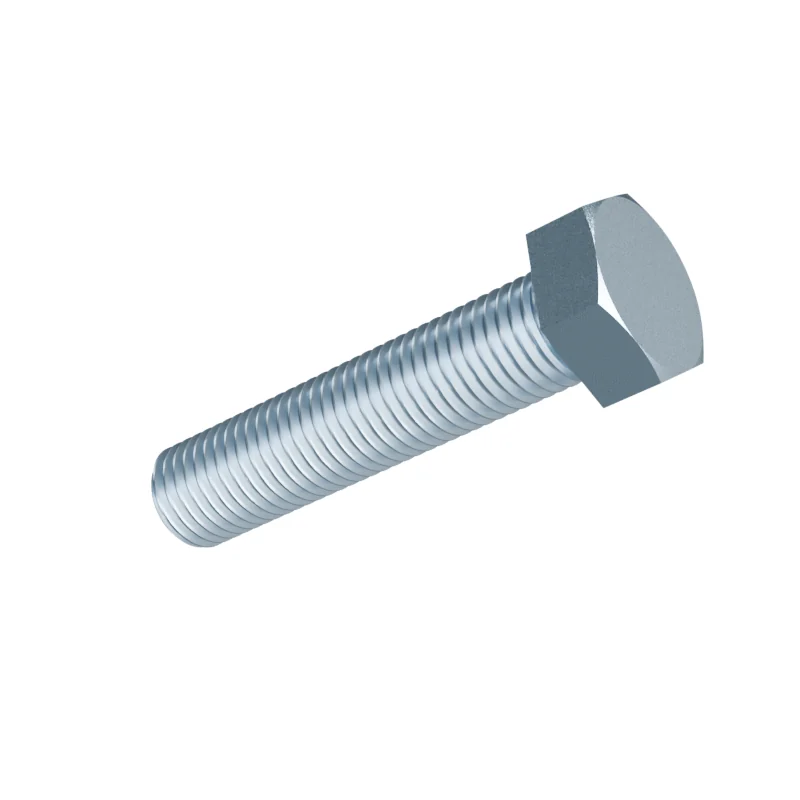

Fully Threaded Hex Bolt

Quote against M20 x 90

Standard, size, material, finish, quantity and destination are enough to begin.

Send RFQ WhatsApp
