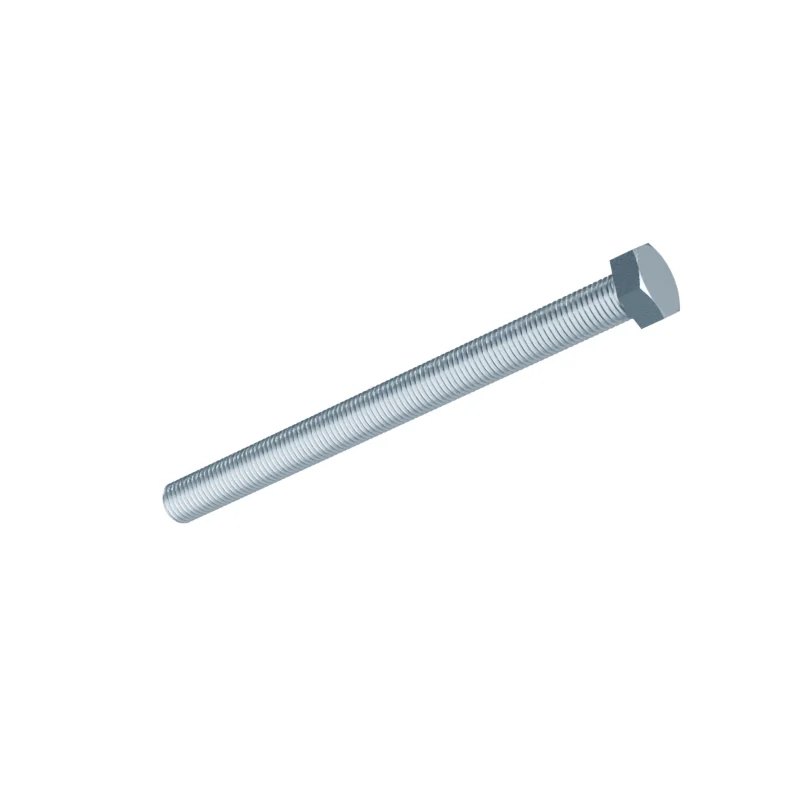

DIN 933 M16 x 200 Fully Threaded Hex Bolt
In stock in 16 material, grade and finish combinations.
Dimensions at M16 x 200
mm · DIN 933 · 1987-09 · withdrawn| Dimension | Nominal | Min | Max | ISO 4017 | |
|---|---|---|---|---|---|
| d | Thread size | M16 | – | – | M16 |
| P | Thread pitch | 2 | – | – | 2 |
| l | Length | 200 | – | – | 200 |
| a | Thread runout | – | – | 6 | 6 |
| c | Washer height | – | 0.2 | 0.8 | 0.2–0.8 |
| da | Underhead diameter | – | – | 17.7 | 17.7 |
| dw | Bearing diameter | – | 22 | – | 22 |
| e | Width across corners | – | 26.17 | – | 26.17 |
| k | Head height | 10 | 9.71 | 10.29 | 9.71–10.29 |
| k' | Wrenching height | – | 6.8 | – | — |
| r | Radius | – | 0.6 | – | 0.6 |
| s | Width across flats | – | 23.16 | 24 | 23.16–24 |
- ISO 4017
- Values in bold differ from DIN 933.
- Length under head
- 200 mm · 197.7–202.3 mm to DIN 933 product grade B
- Approx. weight
- ≈ 304.39 kg per 1 000 pieces · Bare steel, before coating and packing.3.3 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine17 mm
Clearance hole · medium17.5 mm
Clearance hole · coarse18.5 mm
Tap drill14 mm
