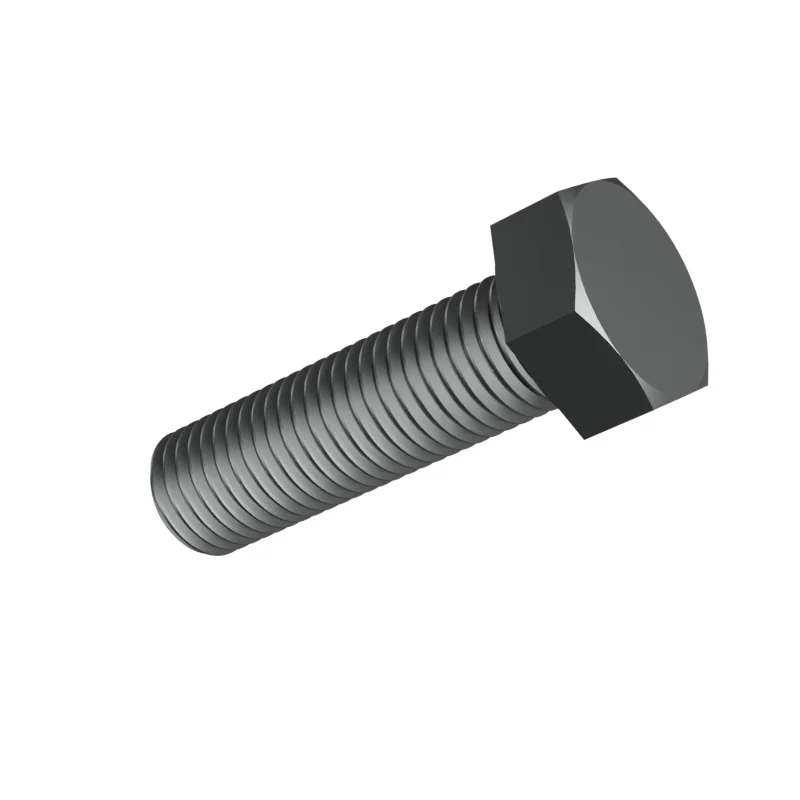

DIN 933 M16×55 Fully Threaded Hex Bolt16 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 933 · 1987-09
- Thread
- M16 · pitch 2 mm
- Length under head
- 55 mm · 54.4–55.6 mm to DIN 933 product grade A
- Drive
- 24 mm spanner · e 26.75 mm
- Head height
- 10 mm
- Clearance / tap drill
- 17 / 17.5 / 18.5 mm · 14 mm
- Weight
- 110.00 kg per 1 000 pieces · From the standard's published table9.1 pieces per kg
Supplied to DIN 933 M16×55 — the figures shown here match GB/T 5783. 2 record the same figures in this size. ISO 4017 (dw 22.49 mm against 22.5) does not. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M16×55
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M16×55 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8.8 | Plain | — | |
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8.8 | Dacromet | — | |
| Carbon Steel | 8.8 | Blackened | — | |
| Carbon Steel | 8.8 | Phosphate | — | |
| Alloy Steel | 10.9 | Plain | — | |
| Alloy Steel | 10.9 | Zinc Plated | — | |
| Alloy Steel | 10.9 | Hot Dip Galvanized | — | |
| Alloy Steel | 10.9 | Dacromet | — | |
| Alloy Steel | 10.9 | Blackened | — | |
| Alloy Steel | 10.9 | Phosphate | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — |
Dimensions at M16×55
| Dimension | Value |
|---|---|
| P | 2 mm |
| s | 24 mm |
| e | 26.75 mm |
| k | 10 mm |
| Weight | 110.00 kg / 1000 pcs |
| Pieces per kg | 9.1 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 17 / 17.5 / 18.5 mm |
| Tap drill | 14 mm |
Other lengths in M16
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M16×45 | 97.10 | open |
| M16×50 | 103.00 | open |
| M16×55 | 110.00 | this page |
| M16×60 | 117.00 | open |
| M16×70 | 130.00 | open |
