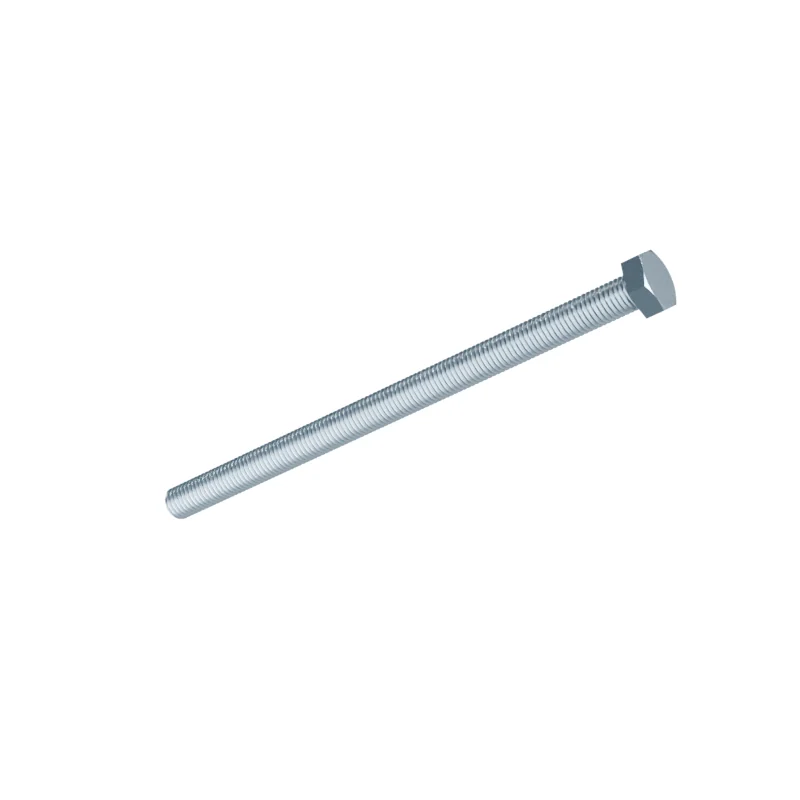

DIN 933 M12 x 200 Fully Threaded Hex Bolt
In stock in 16 material, grade and finish combinations.
Dimensions at M12 x 200
mm · DIN 933 · 1987-09 · withdrawn| Dimension | Nominal | Min | Max | ISO 4017 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| l | Length | 200 | – | – | 200 |
| a | Thread runout | – | – | 5.25 | — |
| c | Washer height | – | 0.15 | 0.6 | — |
| da | Underhead diameter | – | – | 13.7 | — |
| dw | Bearing diameter | – | 17.2 | – | — |
| e | Width across corners | – | 20.88 | – | 20.03 |
| k | Head height | 7.5 | 7.21 | 7.79 | 7.5 |
| k' | Wrenching height | – | 5.05 | – | — |
| r | Radius | – | 0.6 | – | — |
| s | Width across flats | – | 18.48 | 19 | 18 |
- ISO 4017
- Values in bold differ from DIN 933.
- Length under head
- 200 mm · 197.7–202.3 mm to DIN 933 product grade B
- Approx. weight
- ≈ 163.30 kg per 1 000 pieces · Bare steel, before coating and packing.6.1 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
