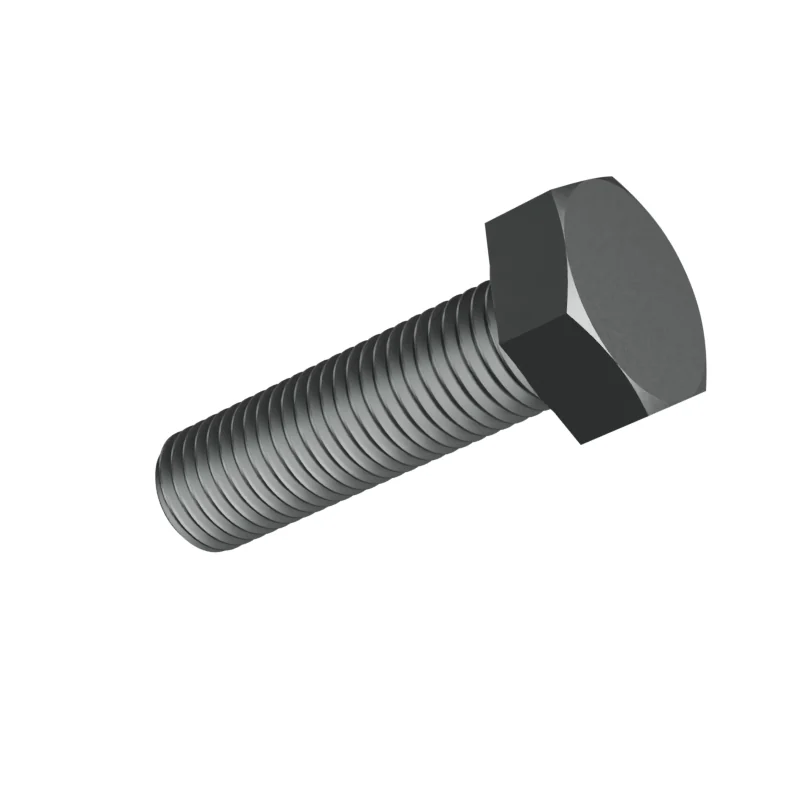

ISO 8676 M10×35 Fine Pitch Hex Bolt21 combinations of material, property class and finish supplied in this size.
- Standard
- ISO 8676 · 2022
- Thread
- M10 · pitch 1.25 mm
- Length under head
- 35 mm · 34.5–35.5 mm to ISO 8676 product grade A
- Drive
- 16 mm spanner · e 17.77 mm
- Head height
- 6.4 mm
- Clearance / tap drill
- 10.5 / 11 / 12 mm · 8.8 mm
- Weight
- 30.32 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering33.0 pieces per kg
Supplied to ISO 8676 M10×35 — the figures shown here match ISO 8765. All 2 record the same figures in this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M10×35
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
Every standard listed here records the same figures at M10×35. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Carbon Steel | 4.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 4.8 | Dacromet | — | |
| Carbon Steel | 4.8 | Blackened | — | |
| Carbon Steel | 4.8 | Phosphate | — | |
| Carbon Steel | 8.8 | Plain | — | |
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8.8 | Dacromet | — | |
| Carbon Steel | 8.8 | Blackened | — | |
| Carbon Steel | 8.8 | Phosphate | — | |
| Alloy Steel | 10.9 | Plain | — | |
| Alloy Steel | 10.9 | Zinc Plated | — | |
| Alloy Steel | 10.9 | Dacromet | — | |
| Alloy Steel | 10.9 | Blackened | — | |
| Alloy Steel | 10.9 | Phosphate | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — |
Dimensions at M10×35
| Dimension | Value |
|---|---|
| P | 1.25 mm |
| s | 16 mm |
| e | 17.77 mm |
| k | 6.4 mm |
| Weight | 30.32 kg / 1000 pcs |
| Pieces per kg | 33.0 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 10.5 / 11 / 12 mm |
| Tap drill | 8.8 mm |
Other lengths in M10
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M10×35 | 30.32 | this page |
| M10×40 | 33.18 | open |
| M10×45 | 36.05 | open |
| M10×50 | 38.92 | open |
| M10×55 | 41.78 | open |
M10 x 40M10 x 45M10 x 50M10 x 55M10 x 60M10 x 65M10 x 70M10 x 80M10 x 90M10 x 100M10 x 110M10 x 120M10 x 130M10 x 140M10 x 150
