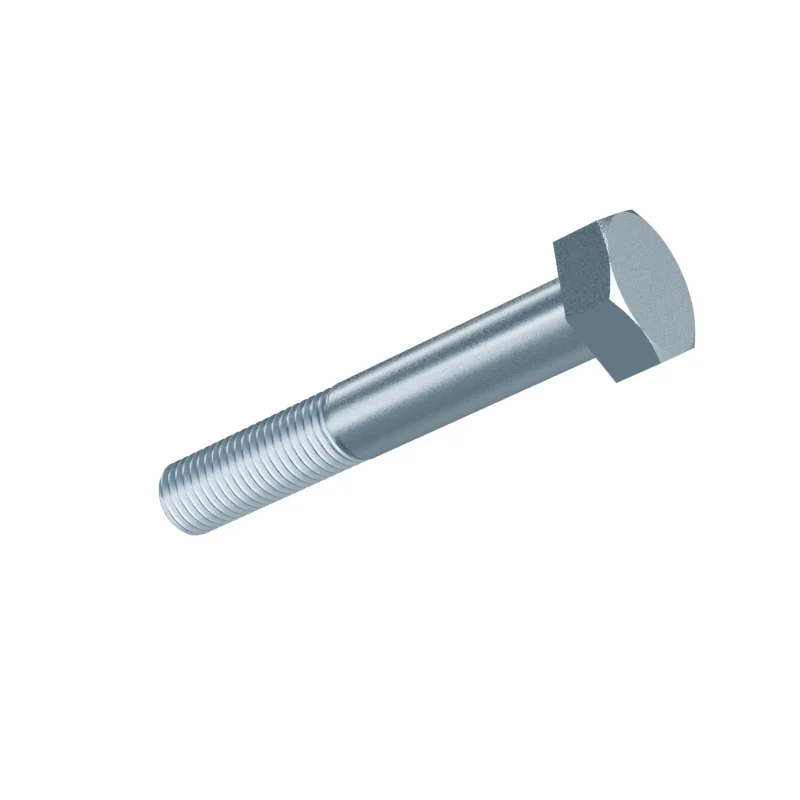

DIN 960 M10 x 65 Fine Pitch Hex Bolt
In stock in 30 material, grade and finish combinations.
Dimensions at M10 x 65
mm · DIN 960 · dimensions from 1970-11 · 1990-01, withdrawn| Dimension | Nominal | Min | Max | ISO 8765 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| Thread pitch | 1.25 | – | – | 1.25 | |
| l | Length | 65 | – | – | 65 |
| s | Width across flats | – | – | 17 | 16 |
| e | Width across corners | – | 18.9 | – | 17.77 |
| k | Head height | 7 | – | – | 6.4 |
- ISO 8765
- Values in bold differ from DIN 960.
- Length under head
- 65 mm
- Approx. weight
- ≈ 51.70 kg per 1 000 pieces · Bare steel, before coating and packing.19.3 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.8 mm
