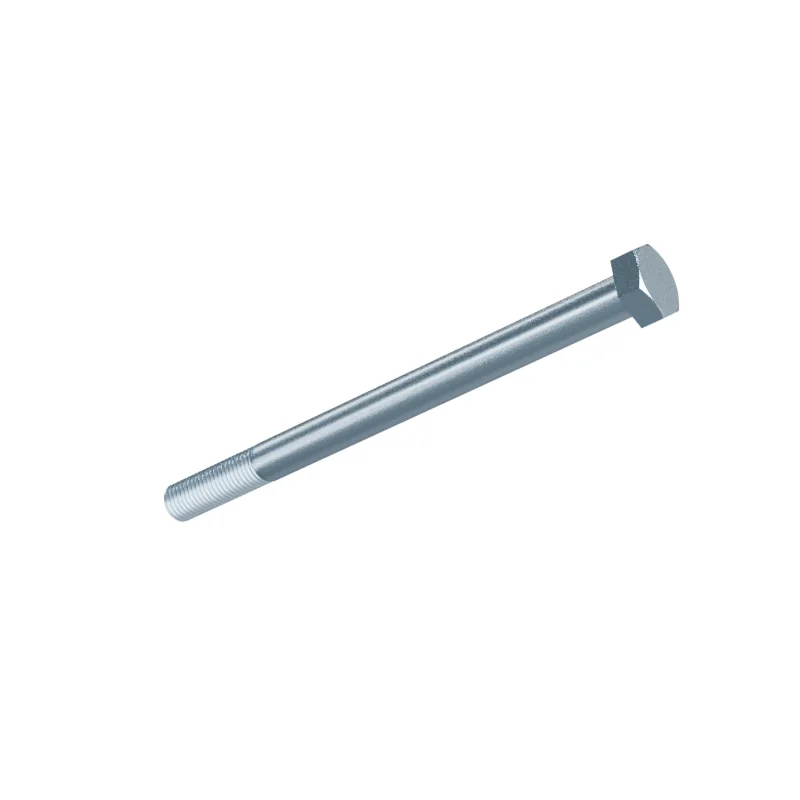

DIN 960 M8 x 110 Fine Pitch Hex Bolt
In stock in 14 material, grade and finish combinations.
Dimensions at M8 x 110
mm · DIN 960 · dimensions from 1970-11 · 1990-01, withdrawn| Dimension | Nominal | Min | Max | ISO 8765 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| Thread pitch | 1 | – | – | 1 | |
| l | Length | 110 | – | – | 110 |
| s | Width across flats | – | – | 13 | 13 |
| e | Width across corners | – | 14.38 | – | 14.38 |
| k | Head height | 5.5 | – | – | 5.3 |
- ISO 8765
- Values in bold differ from DIN 960.
- Length under head
- 110 mm
- Approx. weight
- ≈ 48.60 kg per 1 000 pieces · Bare steel, before coating and packing.20.6 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill7 mm
