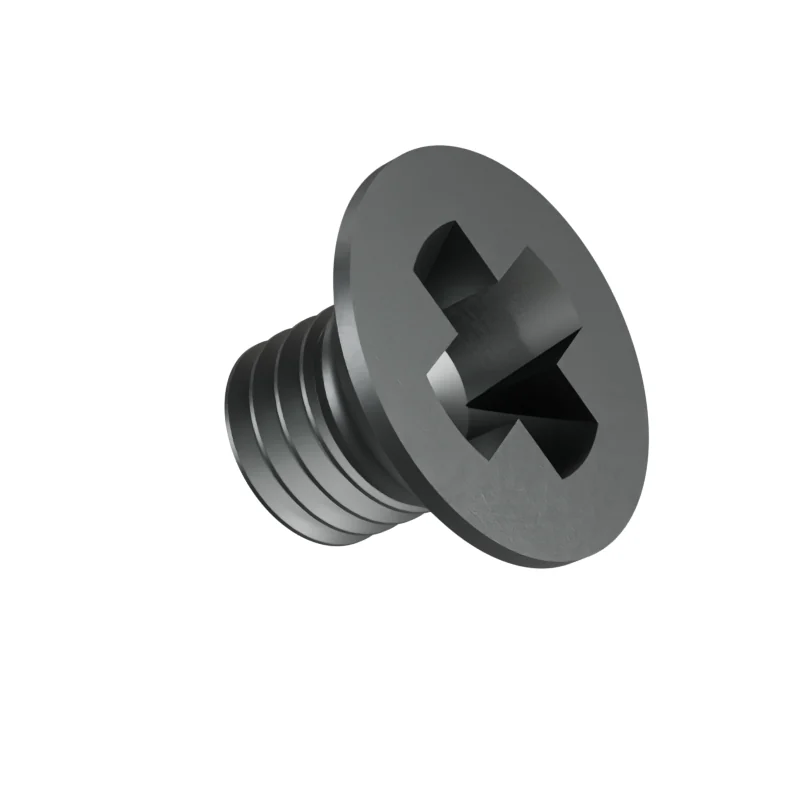

DIN 965 M8×10 Countersunk Screw4 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 965 · 1990-08
- Thread
- M8 · pitch 1.25 mm
- Length under head
- 10 mm
- Head height
- 4 mm
- Clearance / tap drill
- 8.4 / 9 / 10 mm · 6.8 mm
- Weight
- 5.12 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering195 pieces per kg
Supplied to DIN 965 M8×10. ISO 7046 (dk 15.8 mm against 14.5) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M8×10
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M8×10 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — |
Dimensions at M8×10
| Dimension | Value |
|---|---|
| P | 1.25 mm |
| k | 4 mm |
| Weight | 5.12 kg / 1000 pcs |
| Pieces per kg | 195 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 8.4 / 9 / 10 mm |
| Tap drill | 6.8 mm |
Other lengths in M8
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M8×10 | 5.12 | this page |
| M8×12 | 5.76 | open |
| M8×16 | 7.03 | open |
| M8×20 | 8.30 | open |
| M8×25 | 9.90 | open |
