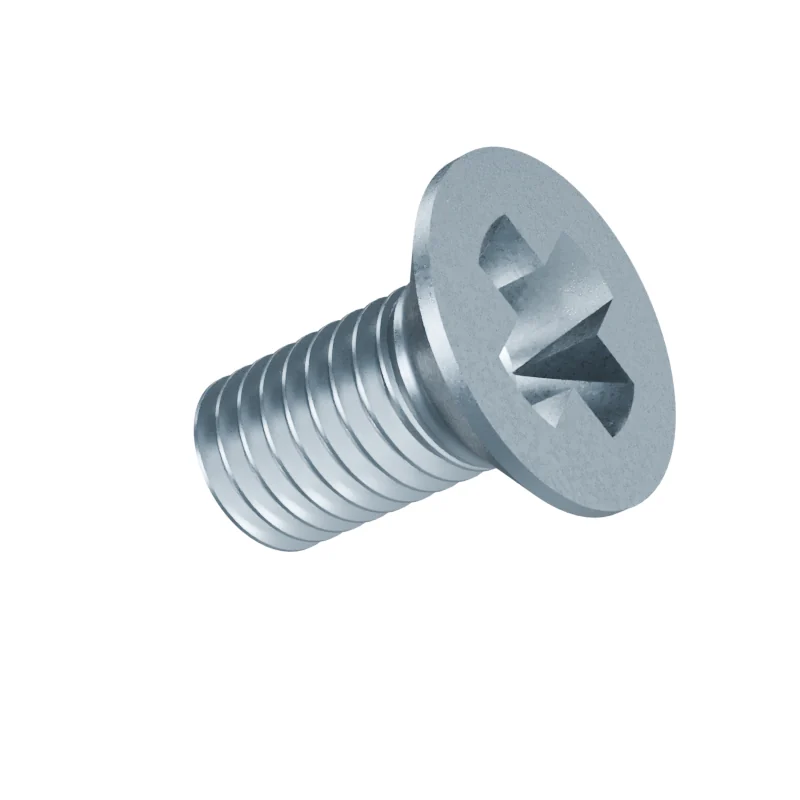

DIN 965 M8 x 16 Countersunk Screw
In stock in 5 material, grade and finish combinations.
Dimensions at M8 x 16
mm · DIN 965 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7046 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| P | Thread pitch | 1.25 | – | – | 1.25 |
| l | Length | 16 | – | – | 16 |
| dk | Head diameter | 14.5 | – | – | 15.8 |
| k | Head height | 4 | – | – | 4.65 |
| b | Thread length | 34 | – | – | 38 |
- ISO 7046
- Values in bold differ from DIN 965.
- Length incl. head
- 16 mm
- Approx. weight
- ≈ 7.03 kg per 1 000 pieces · Bare steel, before coating and packing.142 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill6.8 mm
