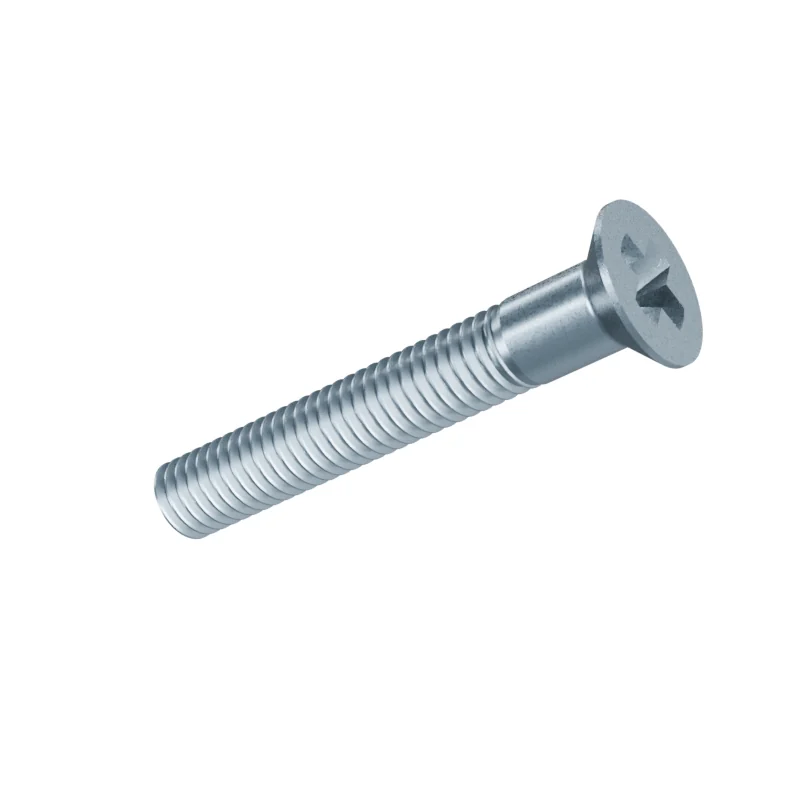

DIN 965 M6 x 40 Countersunk Screw
In stock in 5 material, grade and finish combinations.
Dimensions at M6 x 40
mm · DIN 965 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7046 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| l | Length | 40 | – | – | 40 |
| dk | Head diameter | 11 | – | – | 11.3 |
| k | Head height | 3 | – | – | 3.3 |
| b | Thread length | 28 | – | – | 38 |
- ISO 7046
- Values in bold differ from DIN 965.
- Length incl. head
- 40 mm
- Approx. weight
- ≈ 7.91 kg per 1 000 pieces · Bare steel, before coating and packing.126 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
