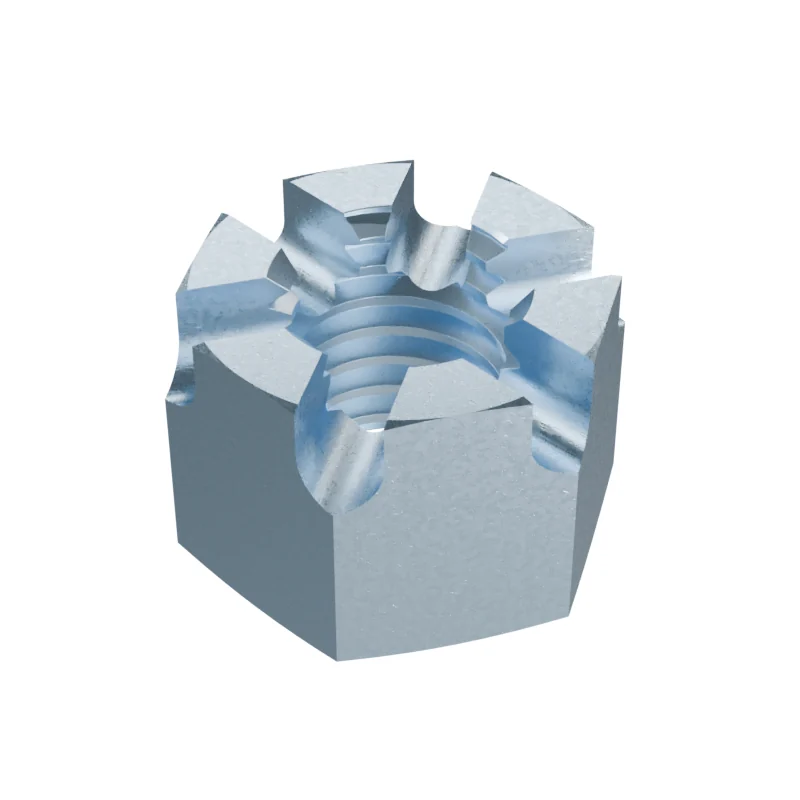

DIN 935 M8 Hexagon Slotted and Castle Nut
In stock in 22 material, grade and finish combinations.
Dimensions at M8
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M8 | – | – |
| P | Thread pitch | 1.25 | – | – |
| m | Nut height | 9.5 | – | – |
| s | Width across flats | – | – | 13 |
| e | Width across corners | – | 14.38 | – |
| Slot width | 2.5 | – | – | |
| Height to slot base | 6.5 | – | – | |
| Matching cotter pin | 2×16 | – | – |
- Approx. weight
- ≈ 7.35 kg per 1 000 pieces · Bare steel, before coating and packing.136 pieces per kg
