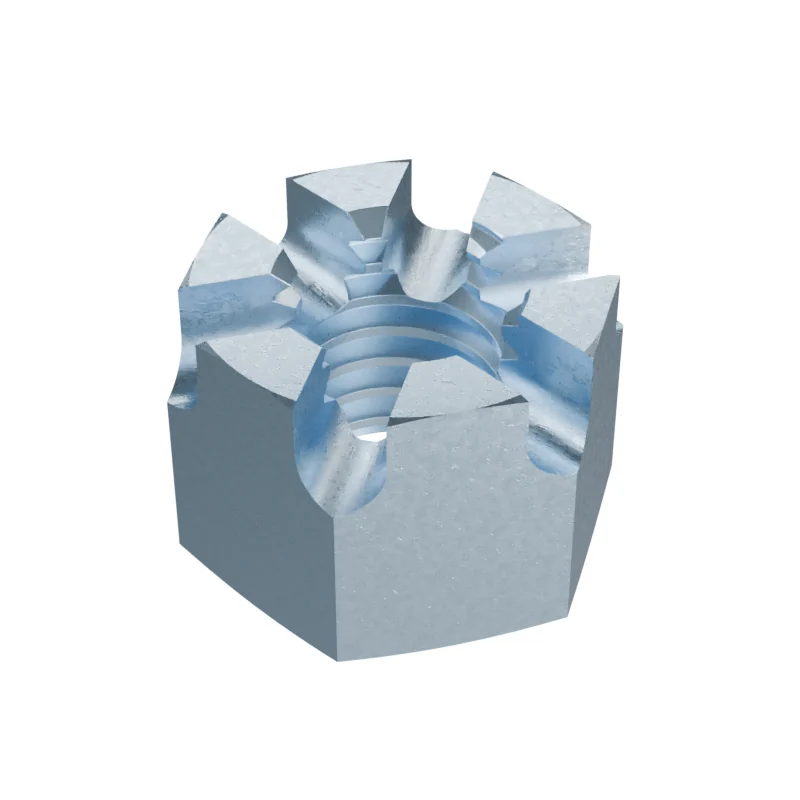

DIN 935 M6 Hexagon Slotted and Castle Nut
In stock in 19 material, grade and finish combinations.
Dimensions at M6
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| m | Nut height | 7.5 | – | – |
| s | Width across flats | – | – | 10 |
| e | Width across corners | – | 11.05 | – |
| Slot width | 2 | – | – | |
| Height to slot base | 5 | – | – | |
| Matching cotter pin | 1.6×14 | – | – |
- Approx. weight
- ≈ 3.16 kg per 1 000 pieces · Bare steel, before coating and packing.316 pieces per kg
