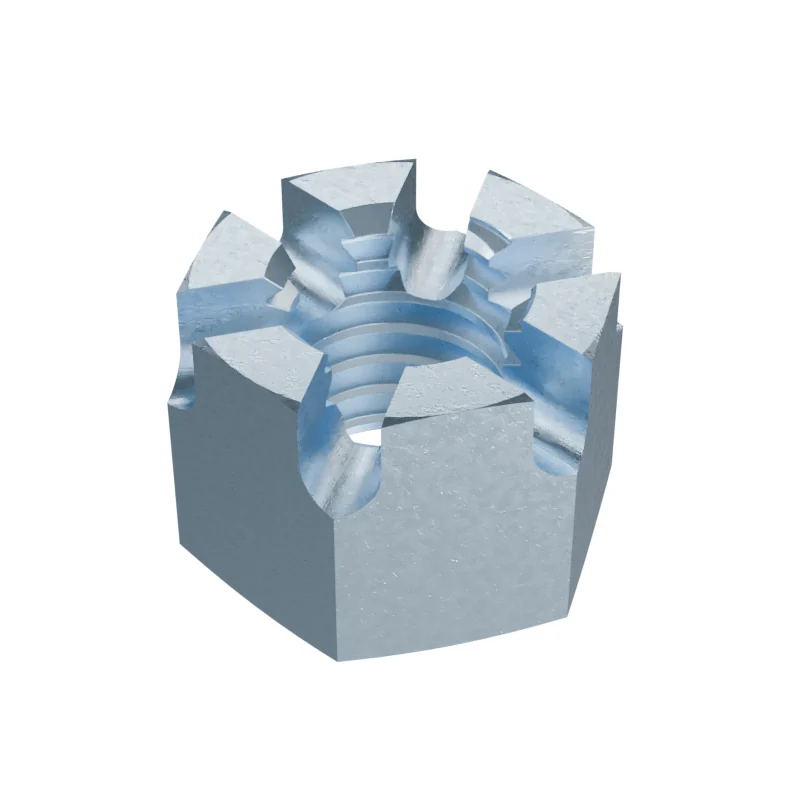

DIN 935 M5 Hexagon Slotted and Castle Nut19 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 935 · 935-1:2013-08
- Thread
- M5 · pitch 0.8 mm
- Drive
- 8 mm spanner · e 8.79 mm
- Weight
- 2.30 kg per 1 000 pieces · From the standard's published table435 pieces per kg
Order M5
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 6 | Zinc Plated | — | |
| Carbon Steel | 6 | Dacromet | — | |
| Carbon Steel | 6 | Phosphate | — | |
| Carbon Steel | 6 | Blackened | — | |
| Carbon Steel | 6 | Plain | — | |
| Carbon Steel | 8 | Zinc Plated | — | |
| Carbon Steel | 8 | Dacromet | — | |
| Carbon Steel | 8 | Phosphate | — | |
| Carbon Steel | 8 | Blackened | — | |
| Carbon Steel | 8 | Plain | — | |
| Carbon Steel | 10 | Zinc Plated | — | |
| Carbon Steel | 10 | Dacromet | — | |
| Carbon Steel | 10 | Phosphate | — | |
| Carbon Steel | 10 | Blackened | — | |
| Carbon Steel | 10 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M5
| Dimension | Value |
|---|---|
| P | 0.8 mm |
| s | 8 mm |
| e | 8.79 mm |
| m | 6 mm |
| Weight | 2.30 kg / 1000 pcs |
| Pieces per kg | 435 |
Plating adds thickness — state the finish on the order.
