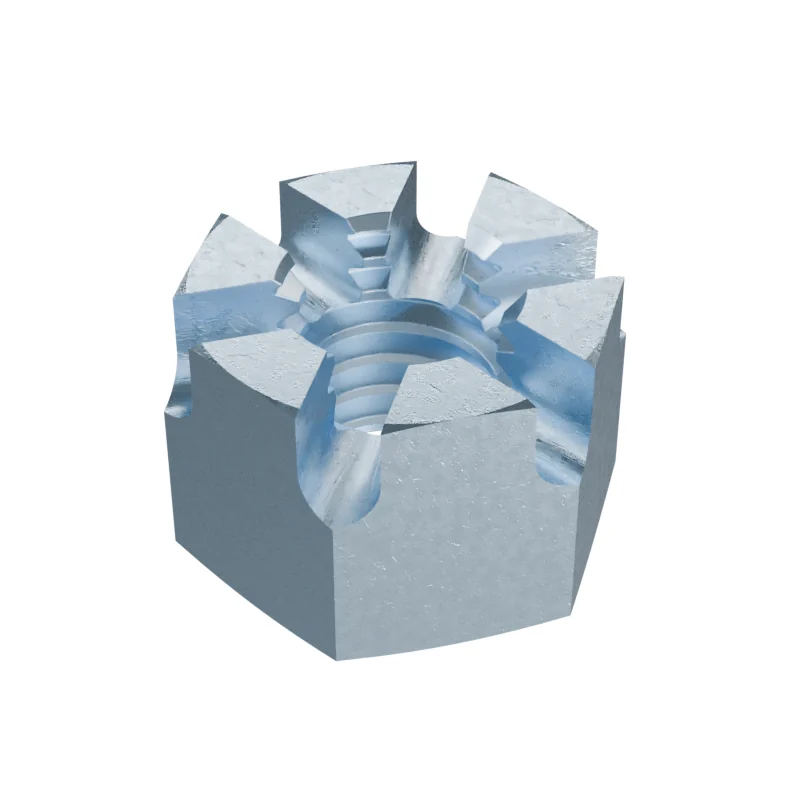

DIN 935 M4 Hexagon Slotted and Castle Nut
In stock in 19 material, grade and finish combinations.
Dimensions at M4
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M4 | – | – |
| P | Thread pitch | 0.7 | – | – |
| m | Nut height | 5 | – | – |
| s | Width across flats | – | – | 7 |
| e | Width across corners | – | 7.66 | – |
| Slot width | 1.2 | – | – | |
| Height to slot base | 3.2 | – | – | |
| Matching cotter pin | 1×10 | – | – |
- Approx. weight
- ≈ 1.12 kg per 1 000 pieces · Bare steel, before coating and packing.893 pieces per kg
