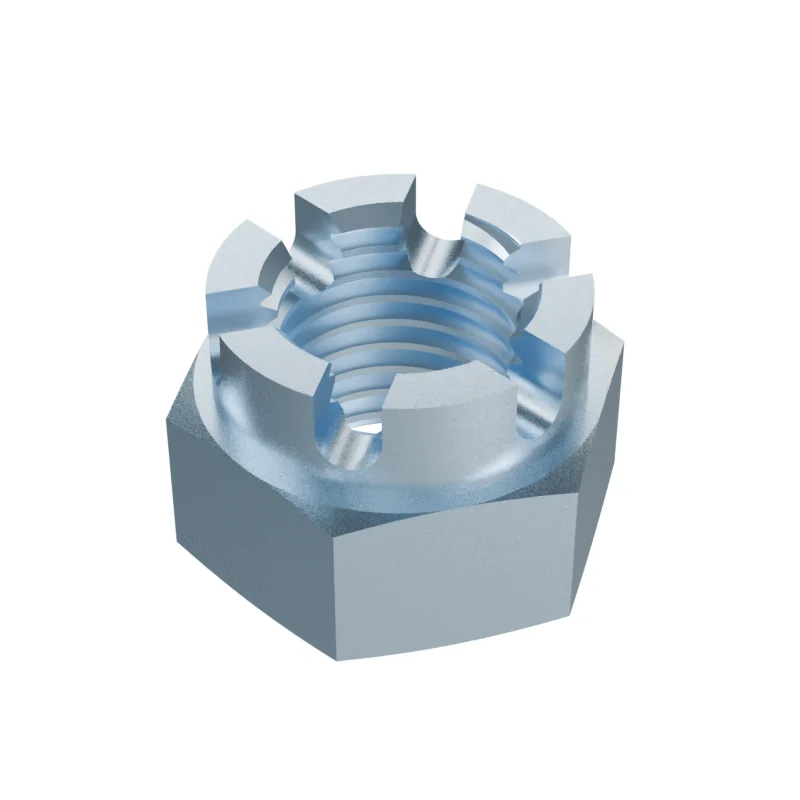

DIN 935 M30 Hexagon Slotted and Castle Nut
In stock in 22 material, grade and finish combinations.
Dimensions at M30
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M30 | – | – |
| P | Thread pitch | 3.5 | – | – |
| m | Nut height | 33 | – | – |
| s | Width across flats | – | – | 46 |
| e | Width across corners | – | 50.85 | – |
| Crown diameter | 42 | – | – | |
| Slot width | 7 | – | – | |
| Height to slot base | 24 | – | – | |
| Matching cotter pin | 6.3×50 | – | – |
- Approx. weight
- ≈ 264.00 kg per 1 000 pieces · Bare steel, before coating and packing.3.8 pieces per kg
