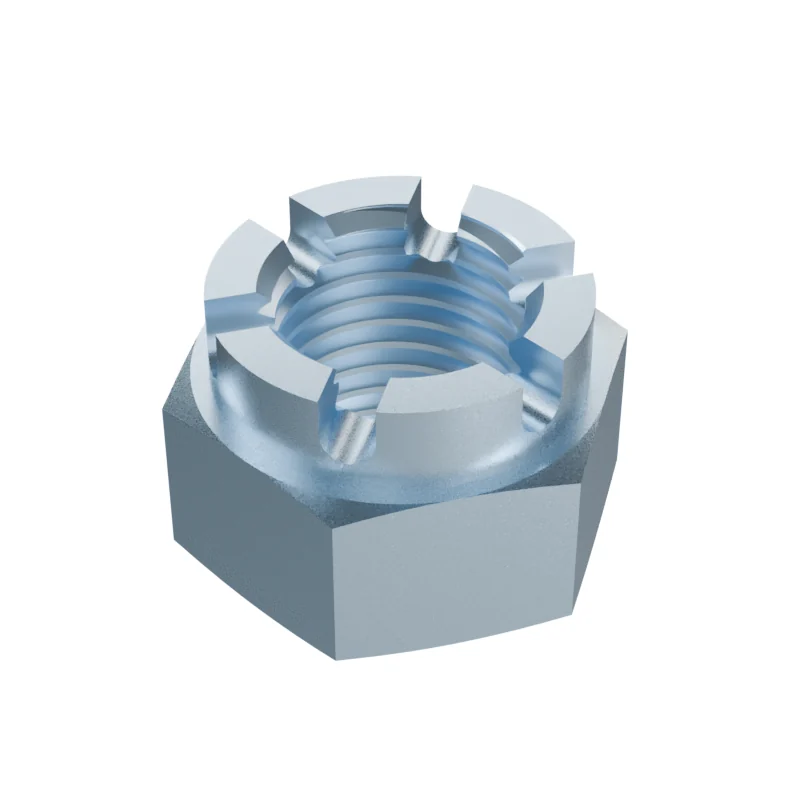

DIN 935 M36 Hexagon Slotted and Castle Nut
In stock in 22 material, grade and finish combinations.
Dimensions at M36
mm · DIN 935 · dimensions from DIN 935-1:2000-10 · current edition 2013-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M36 | – | – |
| P | Thread pitch | 4 | – | – |
| m | Nut height | 38 | – | – |
| s | Width across flats | – | – | 55 |
| e | Width across corners | – | 60.79 | – |
| Crown diameter | 50 | – | – | |
| Slot width | 7 | – | – | |
| Height to slot base | 29 | – | – | |
| Matching cotter pin | 6.3×63 | – | – |
- Approx. weight
- ≈ 447.00 kg per 1 000 pieces · Bare steel, before coating and packing.2.2 pieces per kg
